Patrol 09 Alloy Hardtail
The 2022 09 retains its ability to take you on long off-road adventures, but is now more capable than ever! Its efficient alloy frame is still a perfect choice for an XC ride and resists flex while maintaining a high level of comfort and grip. What’s new for 2022 is the updated long, low, slack design that keeps the rider in full control in even the most challenging terrain. XC, trail, or enduro, the 2022 09 can handle it all.
Long and low ensures riders of all sizes can enjoy the benefits of longer reach and a slacker head angle without sacrificing standover. The new 09 geometry allows riders to size up or size down depending on what style of riding they intend to do. Go long for all-out speed, or choose short for an agile and playful ride.
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
Head Tube Angle |
67° | 67° | 67° | 67° |
Head Tube Length |
105 | 105 | 110 | 115 |
Top Tube Horizontal |
606 | 631 | 657 | 682 |
Reach |
425 | 450 | 475 | 498 |
Standover |
704 | 708 | 738 | 780 |
Stack |
630 | 630 | 635 | 639 |
Seat Tube Length |
400 | 420 | 460 | 510 |
Seat Angle |
74° | 74° | 74° | 74° |
Bottom Bracket Height |
311 | 311 | 311 | 311 |
Bottom Bracket Drop |
-62.5 | -62.5 | -62.5 | -62.5 |
Chainstay Length |
440 | 440 | 440 | 440 |
Wheelbase |
1157 | 1182 | 1206 | 1234 |
2022 PATROL 093 |
2022 PATROL 094 |
|
FRAME |
PATROL alloy hardtail XC-trail, 12×148 mm | PATROL alloy hardtail XC-trail, 12×148 mm |
FORK |
ROCKSHOX Recon Silver RL, 120mm travel | X-FUSION RC32, 130mm travel, TA 15×110 |
REAR MECH |
SHIMANO Deore M6100, 12s | SHIMANO Deore M5100, 11s |
SHIFTER |
SHIMANO Deore M6100 | SHIMANO Deore M5100 |
CHAINSET |
SHIMANO Deore MT510-1 | WHEEL TOP SR-11-C, 32t |
CASSETTE |
SHIMANO Deore M6100, 12s, 10-50t | SHIMANO Deore M5100-11, 11-51t |
BRAKES |
SHIMANO MT200 | SHIMANO MT200 |
WHEELS |
PATROL alloy rims with SHIMANO hubs | PATROL, alloy, 32hPATROL, alloy, 32h |
TYRES |
MAXXIS Rekon Race, 29×2.25 | MAXXIS Rekon Race, 29×2.25 |
*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
The 2022 09 retains its ability to take you on long off-road adventures, but is now more capable than ever! Its efficient alloy frame is still a perfect choice for an XC ride and resists flex while maintaining a high level of comfort and grip. What’s new for 2022 is the updated long, low, slack design that keeps the rider in full control in even the most challenging terrain. XC, trail, or enduro, the 2022 09 can handle it all.
Long and low ensures riders of all sizes can enjoy the benefits of longer reach and a slacker head angle without sacrificing standover. The new 09 geometry allows riders to size up or size down depending on what style of riding they intend to do. Go long for all-out speed, or choose short for an agile and playful ride.
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
Head Tube Angle |
67° | 67° | 67° | 67° |
Head Tube Length |
105 | 105 | 110 | 115 |
Top Tube Horizontal |
606 | 631 | 657 | 682 |
Reach |
425 | 450 | 475 | 498 |
Standover |
704 | 708 | 738 | 780 |
Stack |
630 | 630 | 635 | 639 |
Seat Tube Length |
400 | 420 | 460 | 510 |
Seat Angle |
74° | 74° | 74° | 74° |
Bottom Bracket Height |
311 | 311 | 311 | 311 |
Bottom Bracket Drop |
-62.5 | -62.5 | -62.5 | -62.5 |
Chainstay Length |
440 | 440 | 440 | 440 |
Wheelbase |
1157 | 1182 | 1206 | 1234 |
2022 PATROL 093 |

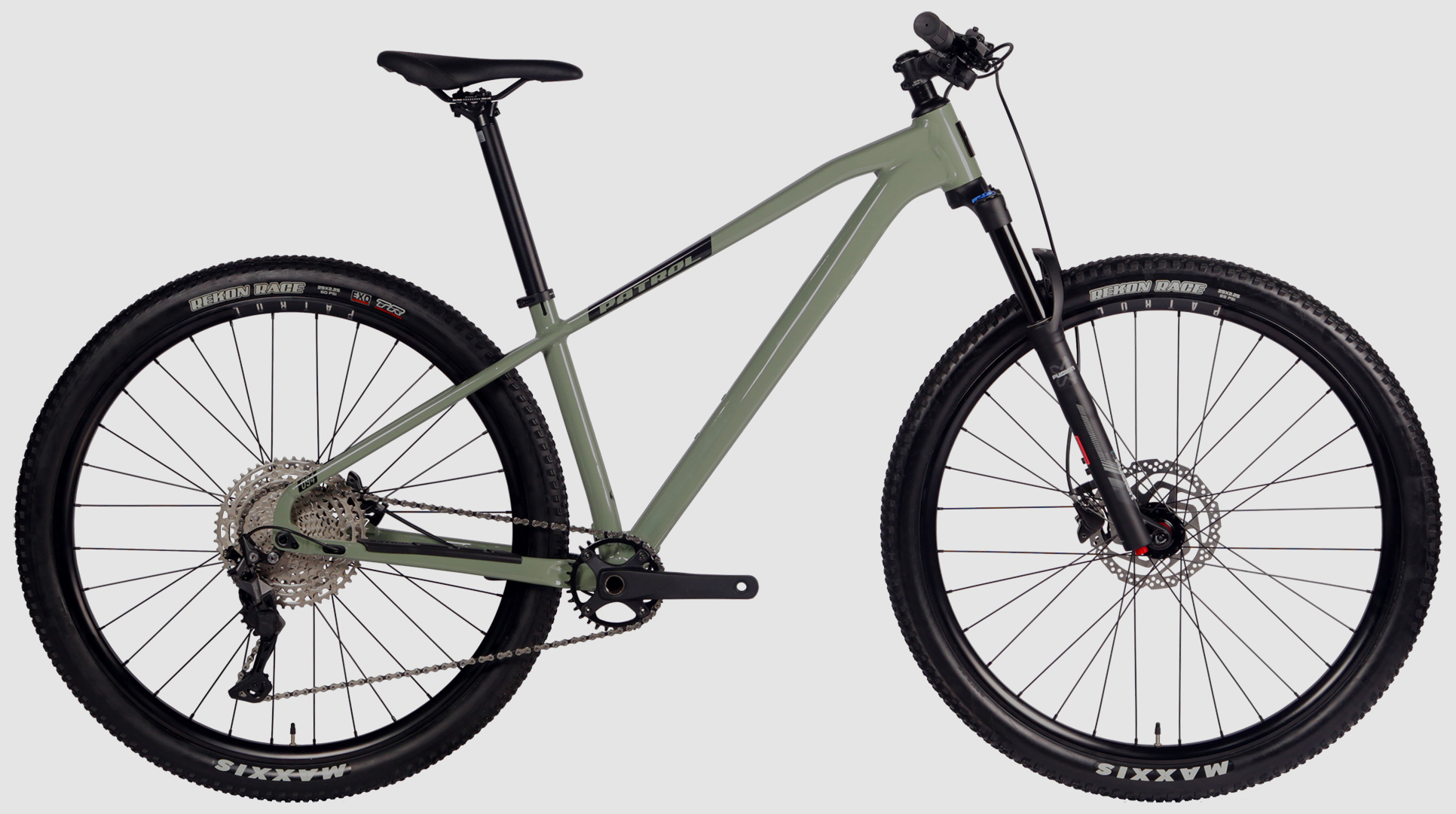

2022 PATROL 094 |
|
