Patrol Mountain

Patrol C09 Carbon Hardtail

Don’t be fooled by the sleek looks — the Patrol C09 carbon 29er hardtails are built for more than just speed. While they may resemble XC race machines at first glance, their aggressive enduro-inspired geometry tells a different story: these bikes are made to charge hard. Crafted with lightweight carbon frames, the C09 range features modern internal cable routing through the headtube and a hidden compartment in the downtube — perfect for stashing a spare gear hanger or small essentials. Clean, capable, and built to rip, these hardtails are ready for whatever the trail throws at you.
Find Our Distributors

The Patrol C091 is a comfortable XC bike, a hoot at the trail centre and more capable than a gravel bike for long-distance touring. Forget about enduro, trail, down-country, it’s good to see a bike that represents what a mountain bike should be, a great all-around off-roader.

Singletrack

“One of the other hidden features on the C09 is a spare derailleur hanger that can be found in the downtube.” – Pinkbike

Small
Medium
Large
X-Large
Head Tube Angle
 67° 67° 67° 67°
Head Tube Length
 105 110 110 115
Top Tube Horizontal
 606 631 655 685
Reach
 425 450 475 500
Standover
 701 709 743 781
Stack
 630 630 635 645
Seat Tube Length
 400 420 460 510
Seat Angle
 74° 74° 74° 74°
Bottom Bracket Height
 308 308 308 308
Bottom Bracket Drop
 -62.5 -62.5 -62.5 -62.5
Chainstay Length
 430 430 430 430
Wheelbase
 1147 1172 1199 1226

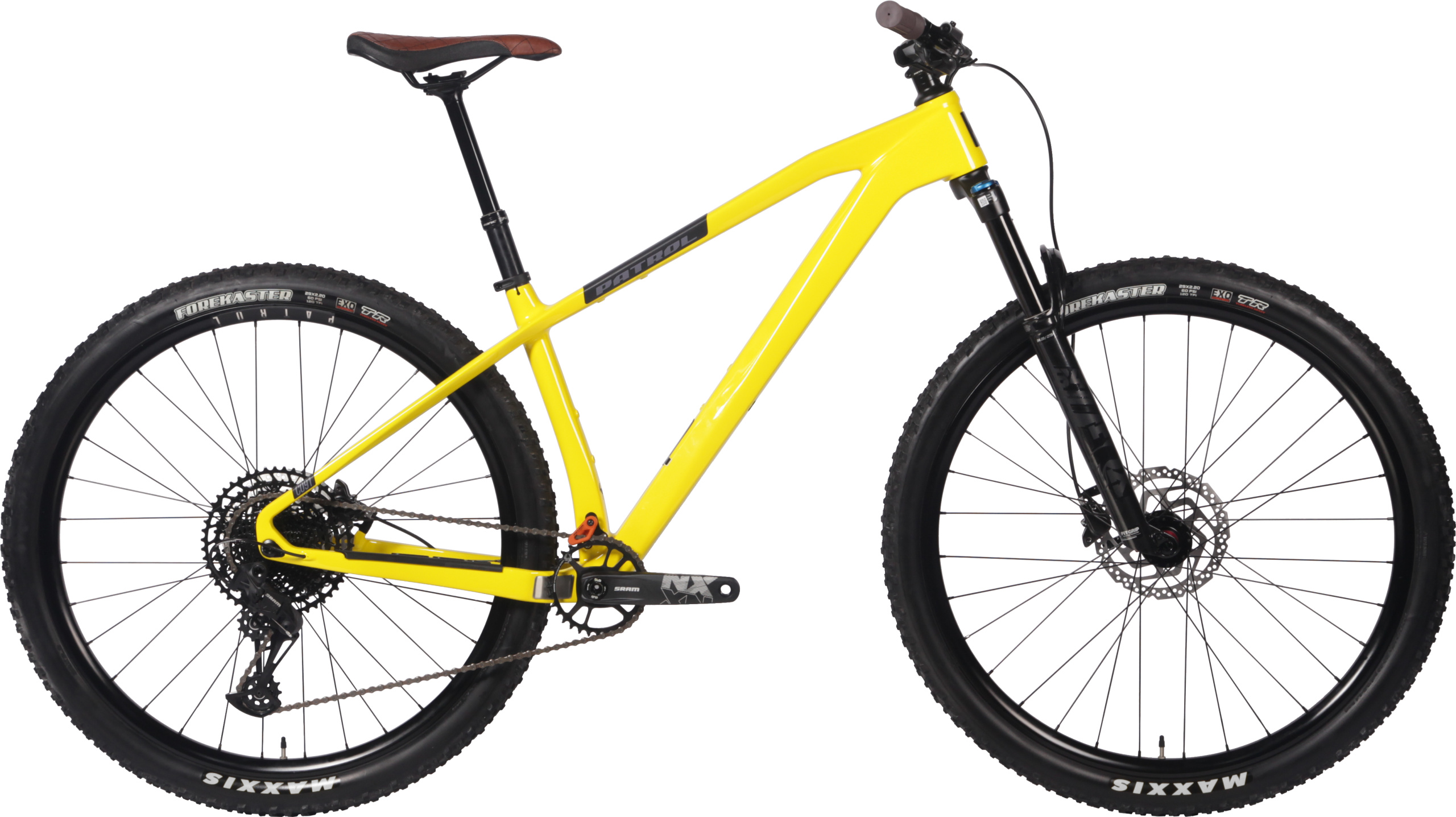

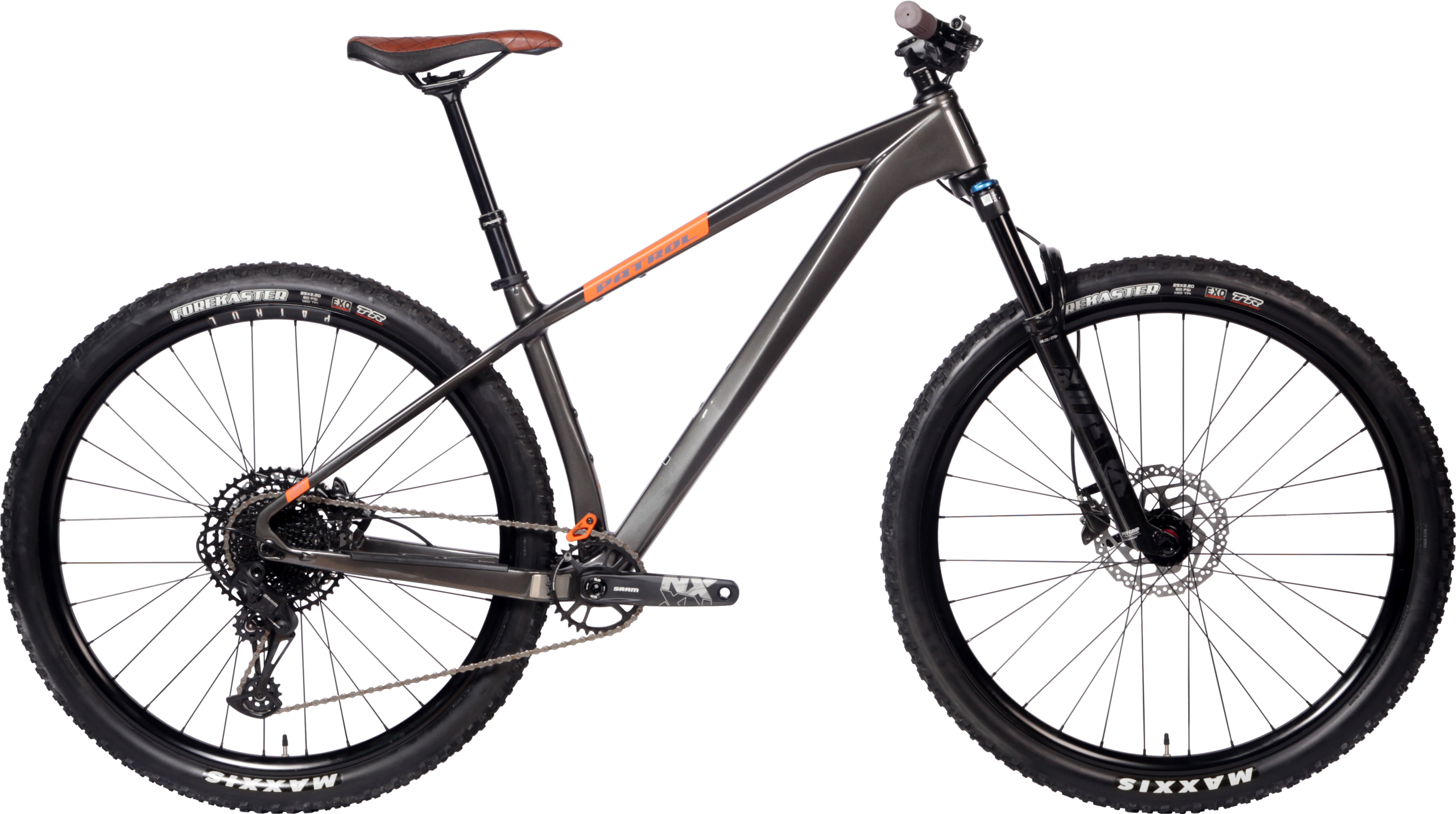

Patrol C091

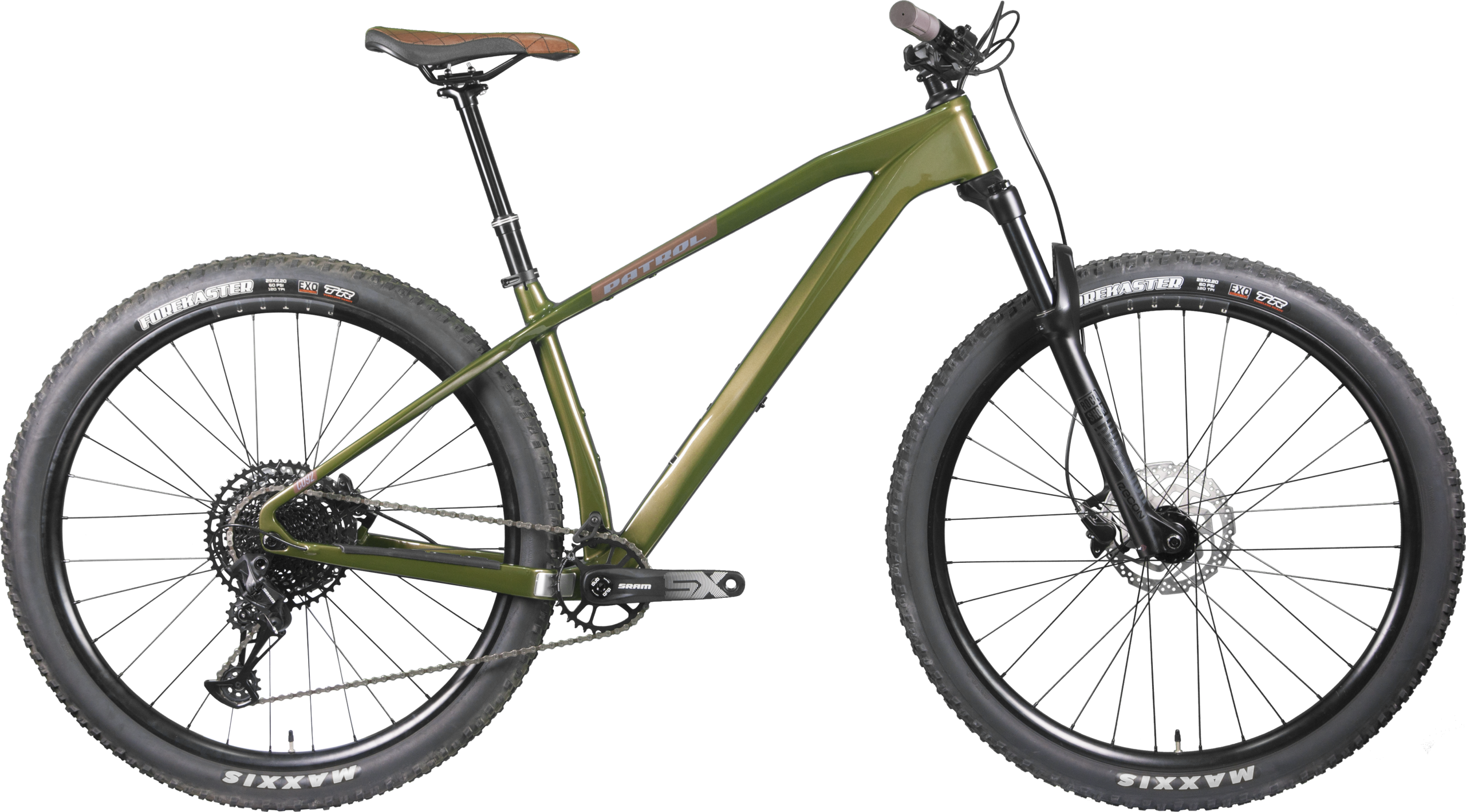

Patrol C092

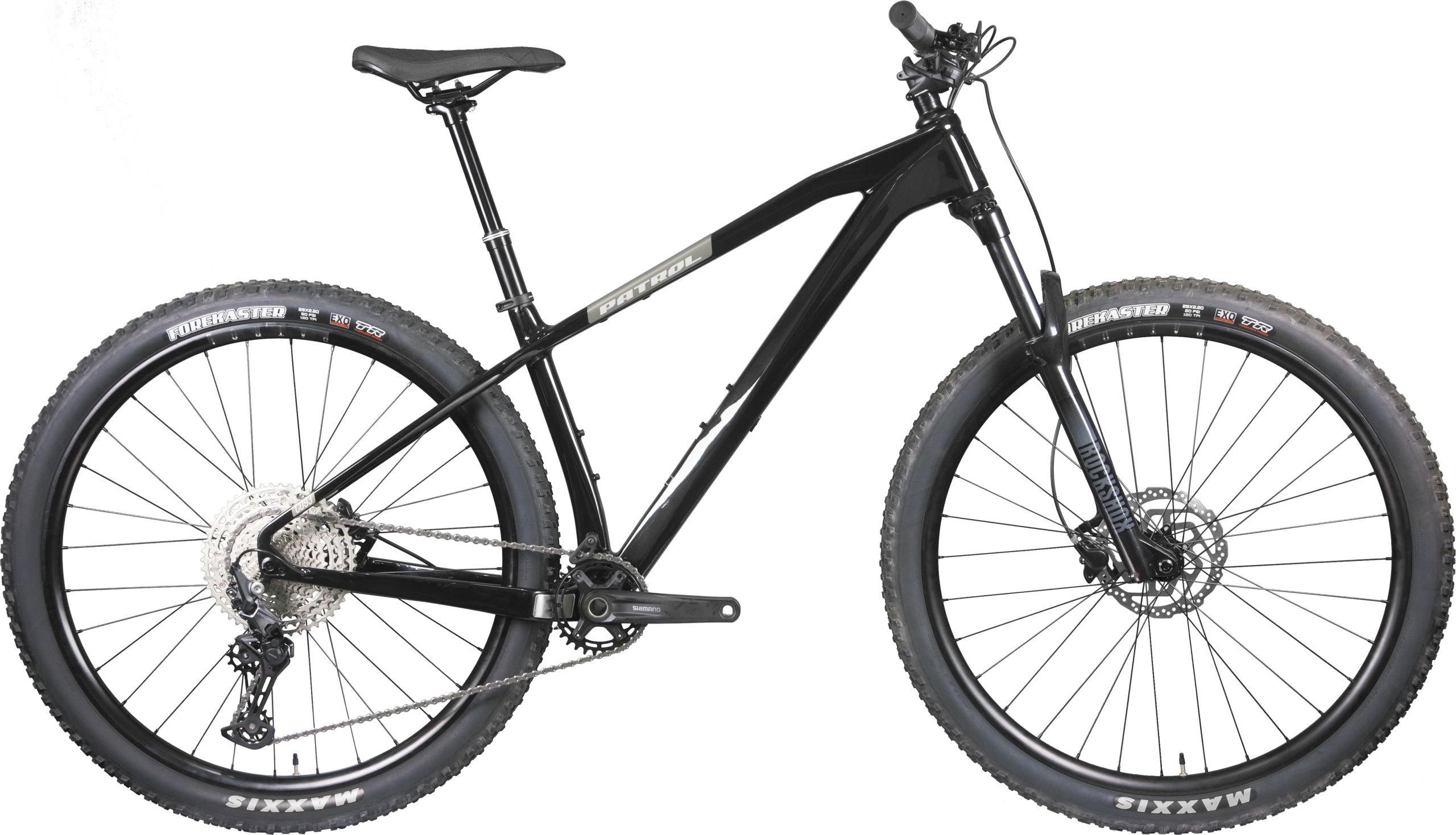

Patrol C093
FRAME
 PATROL carbon hardtail XC-Trail, 12×148 mm Boost PATROL carbon hardtail XC-Trail, 12×148 mm Boost PATROL carbon hardtail XC-Trail, 12×148 mm Boost
FORK
 Fox 34 Performance, 130, 15 x110 X-FUSION RC32, 130mm travel, 15×110 Rockshox Recon RL, 120mm
DROPPER
 X FUSION Manic, 31.6mm, 125mm – 175mm KS KSP900-I remote, 31.6mm, 150mm (S/M) – 175mm (L/XL) KS KSP900-I remote, 31.6mm, 125mm -175mm
REAR MECH
 SRAM SX Eagle, 12s SHIMANO Deore M6100, 12s SHIMANO Deore M6100, 12 speed
SHIFTER
 SRAM NX Eagle, 12-speed SHIMANO Deore M6100 SHIMANO Deore M5100
CHAINSET
 SRAM NX Eagle, 32t SHIMANO Deore MT510-1 SHIMANO Deore M510-1, 32t
CASSETTE
 SRAM PG-1210 Eagle, 11-50t SHIMANO Deore M6100, 12s, 10-50t SHIMANO Deore M6100, 10-51t
BRAKES
 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200
WHEELS
 PATROL, alloy, 32h PATROL, alloy, 32h PATROL, alloy rims with Shimano hubs
TYRES
 Maxxis Forekaster, 29 x 2.35 VEE TIRE Crown Gem, 29×2.30 Maxxis Forekaster, 29×2.35
PRICE
 $2199 $1899 $1699

*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
