Patrol Mountain

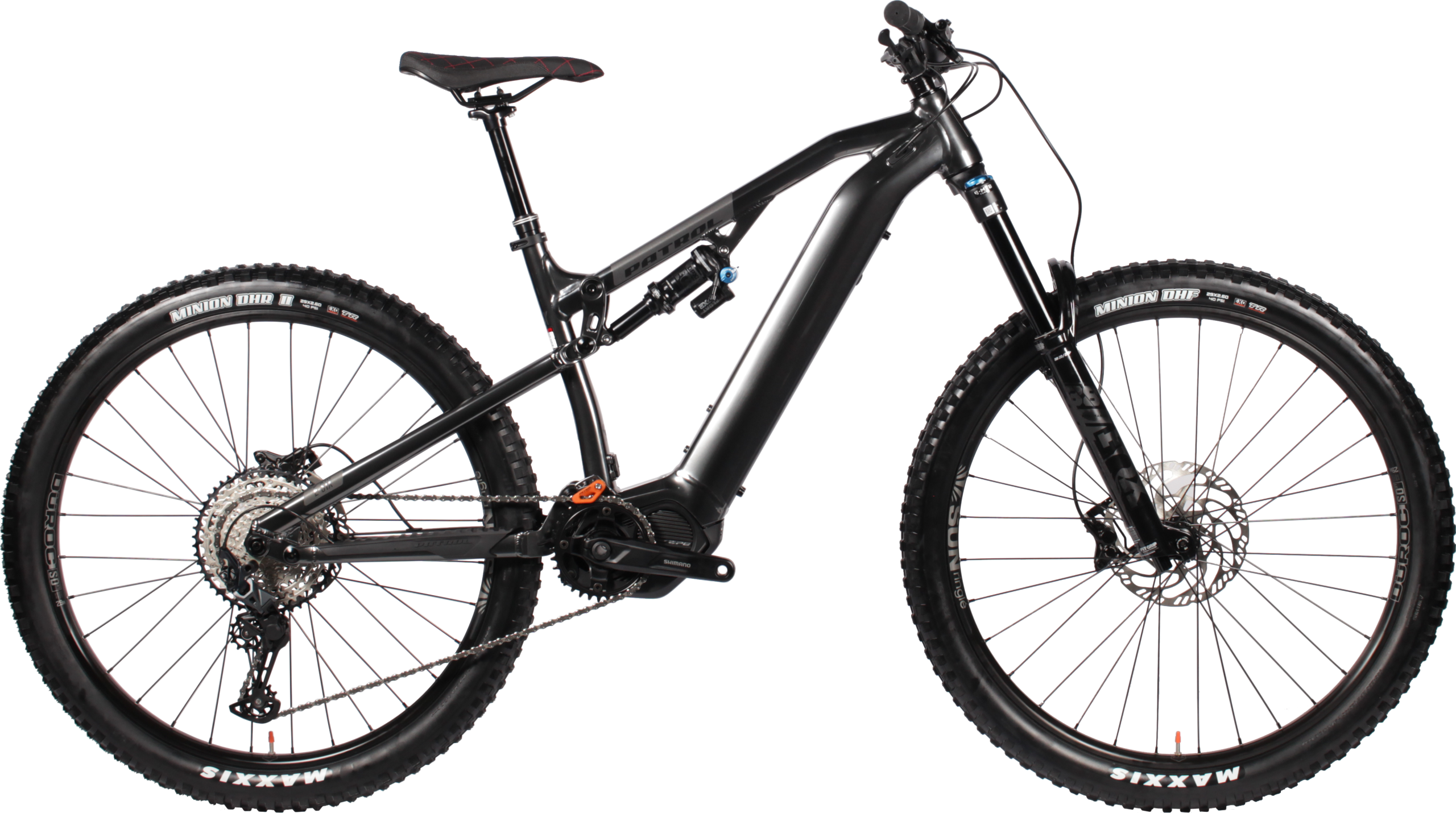

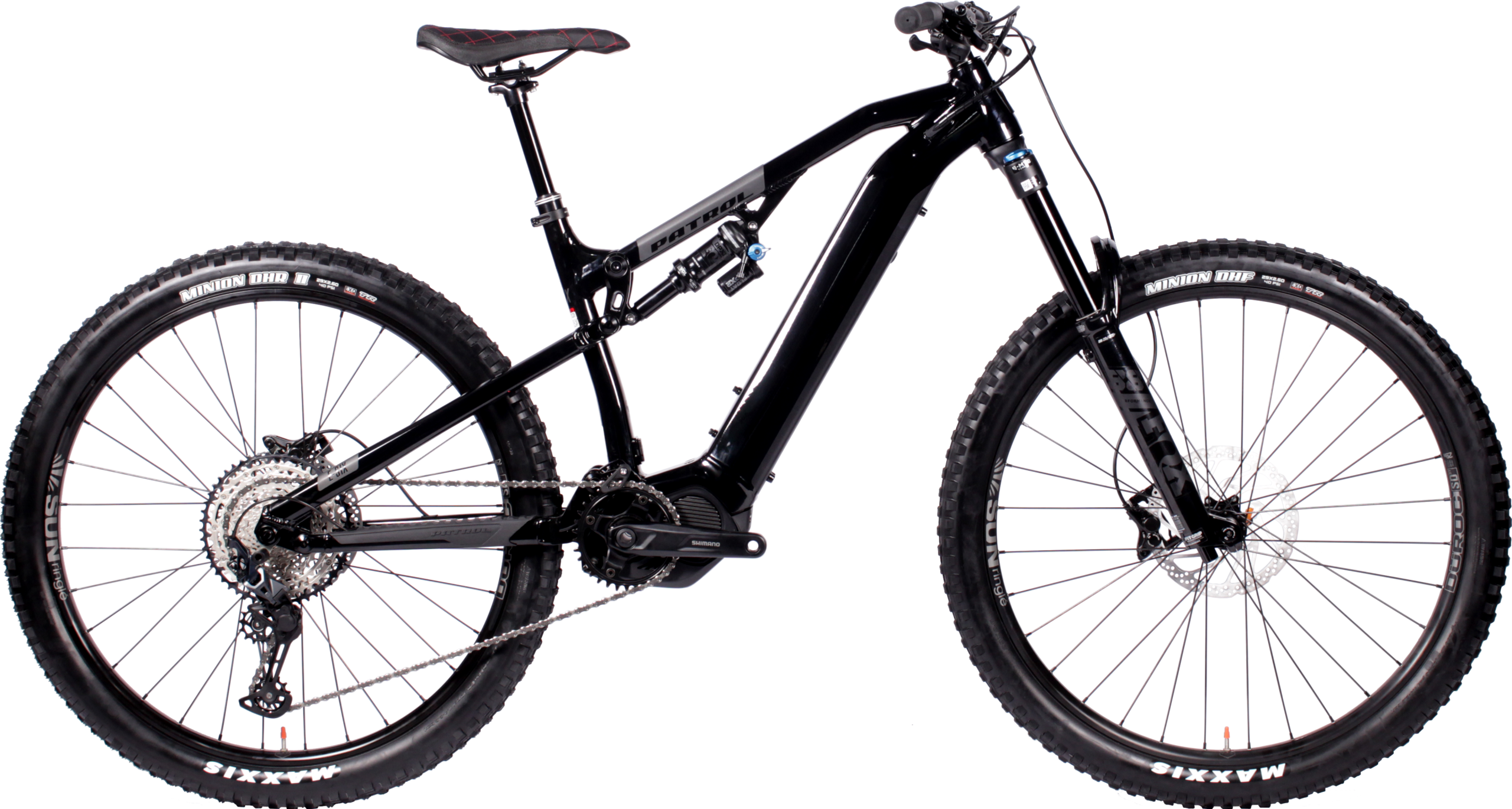

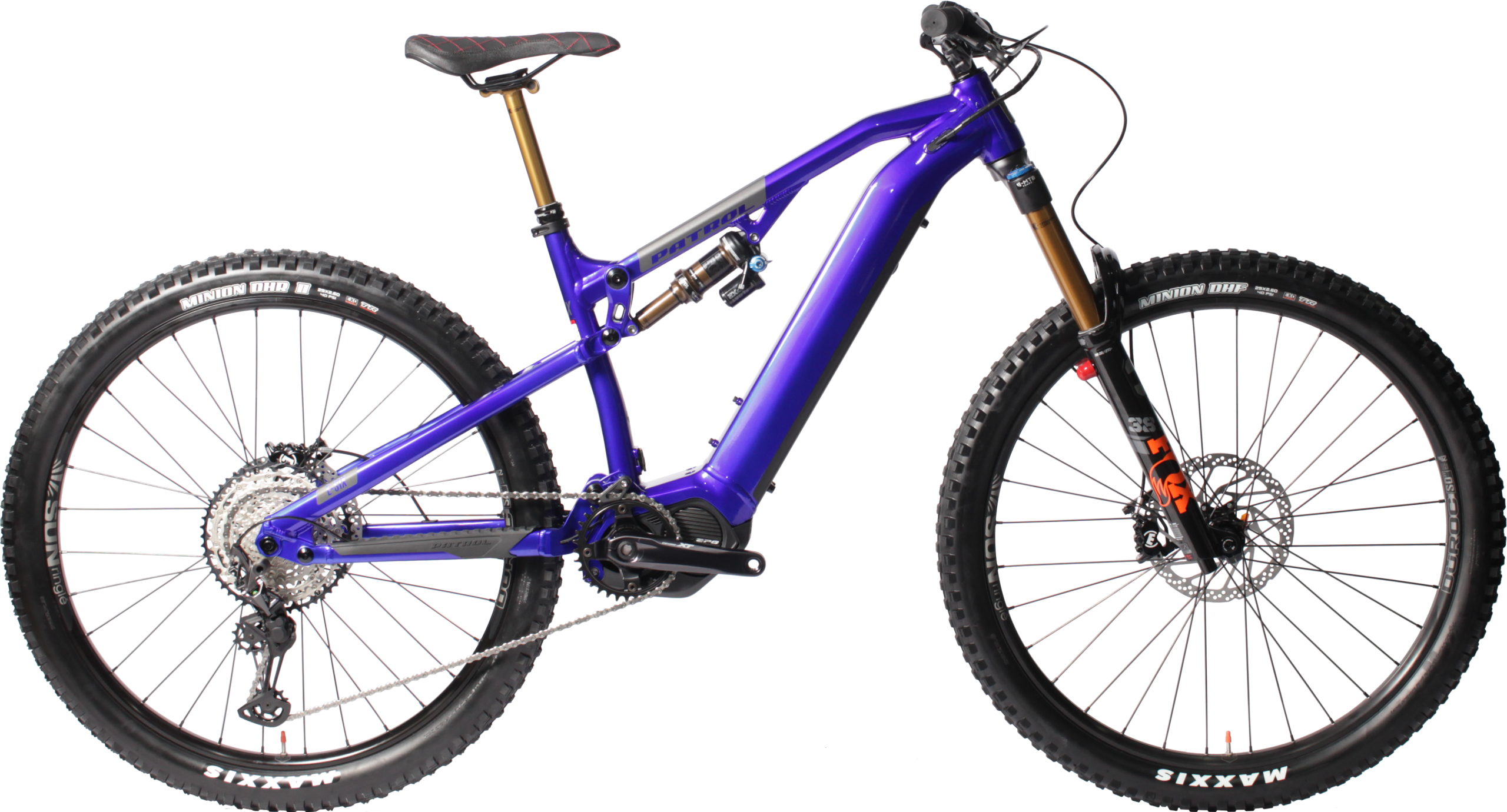

Patrol E-Six

The Patrol E-Six is built for riders who demand serious power, speed, and control on technical terrain. With 29-inch wheels, enduro-ready geometry, and aggressive trail handling, it’s designed to boost your confidence whether you’re charging down steep descents or powering through rock gardens. Inspired by our flagship Patrol 691 Evo, the E-Six was one of the first eMTBs to feature the 85Nm Shimano EP8 motor — a powerful, tunable system paired with a large internal battery for all-day adventures. This bike delivers pure mountain performance with electric muscle, ready to take you higher, faster, and further.
Find Our Distributors

The E-Six uses an all-alloy frame with 150mm of travel on the rear and 160mm at the opposite end. Patrol developed the E-Six as a 29er eMTB and ships the E-Six with complete Shimano drivetrains, Fox Suspension and a mix of own-brand kit.

-Pinkbike

“the Patrol E-Six was a blast, even once you got to the bottom and had to pedal back up. Now, that same E-Six model has gotten even better with the introduction of Shimano’s EP8 drive system.” – Bike Rumor

Small Medium Large X-Large
Head Tube Angle
 65° 65° 65° 65°
Head Tube Length
 105 110 115 125
Top Tube Horizontal
 566 587 609 627
Reach
 435 455 475 490
Standover
 716 719 722 724
Stack
 609 614 614 627
Seat Tube Length
 400 420 455 470
Seat Angle
 76° 76° 76° 76°
Bottom Bracket Height
 349 349 349 349
Bottom Bracket Drop
 -27 -27 -27 -27
Chainstay Length
 445 445 445 445
Wheelbase
 1199 1221 1244 1263



Patrol E-Six S

Patrol E-Six
FRAME
 PATROL alloy electric all-mountain, 12×148 mm, 150mm travel PATROL alloy electric all-mountain, 12×148 mm, 150mm travel.
FORK
 FOX 38 E Factory, 160mm travel FOX 38 E Rhythm, 160mm travel
SHOCK
 FOX Float DPX2 Factory, 3-pos FOX Float DPX2, 3-pos
DROPPER
 FOX Transfer Factory, 31.6mm, 125mm-175mm KS KSP900-i, 31.6mm, 125mm 175mm
MOTOR
 SHIMANO DU-EP800 SHIMANO DU-EP800
BATTERY
 630Wh 630Wh
REAR MECH
 SHIMANO Deore XT M8100, 12s SHIMANO SLX M7100, 12s
SHIFTER
 SHIMANO Deore XT M8100-R SHIMANO SLX M7100-R
CHAINSET
 SHIMANO Deore XC FC-M8150, SM-CRE80-12-B, 34t SHIMANO FC-EM600, SM-CRE80-12-B, 34t
CASSETTE
 SHIMANO SLX M7100, 12s, 12-51t SHIMANO SLX M7100, 12s, 12-51t
BRAKES
 MAGURA MT5N, 4-piston F/R SHIMANO MT420, 4 piston F/R
WHEELS
 SUNringlé Düroc SD37 rims with SHIMANO hubs SUNringlé Düroc SD37 rims with SHIMANO hubs
TYRES
 MAXXIS Minion DHF front, DHR II foldable rear, 29×2.60 MAXXIS Minion DHF front, DHR II rear, 29×2.60

*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
