Patrol Mountain

Patrol Dirt Jump Series

Dirt jumping is at the heart of mountain biking, its where many of us begin our mountain bike journey, where we learn new skills, and make new memories. Patrol Mountain has been in the game since the iconic 0-Six, and today… we’re cranking the dial to legendary with our most dialled-in DJ lineup yet. Introducing the all-new Patrol D-Series—purpose-built to spark the next generation of senders and give seasoned jumpers the perfect tool to push their limits. Perfected for ripping on dirt, carving concrete, and dropping into your local park, the D-Series range has your back.
Find Our Distributors

Why the Patrol D-Series Hits Different

  • A Complete Lineup
    From pint-sized rippers to full-grown senders—20in, 24in, and 26in options mean everyone gets a pro level dirt jump frame in in the size that fits them best.
  • 4130 Chromoly Steel
    Because steel is still the real deal. It’s tough, timeless, and gives you that buttery-smooth, forgiving feel.
  • Dialled Jumper Geometry
    Short chainstays. Snappy handling. Maximum agility. Built for riders who want their bike to respond instantly.

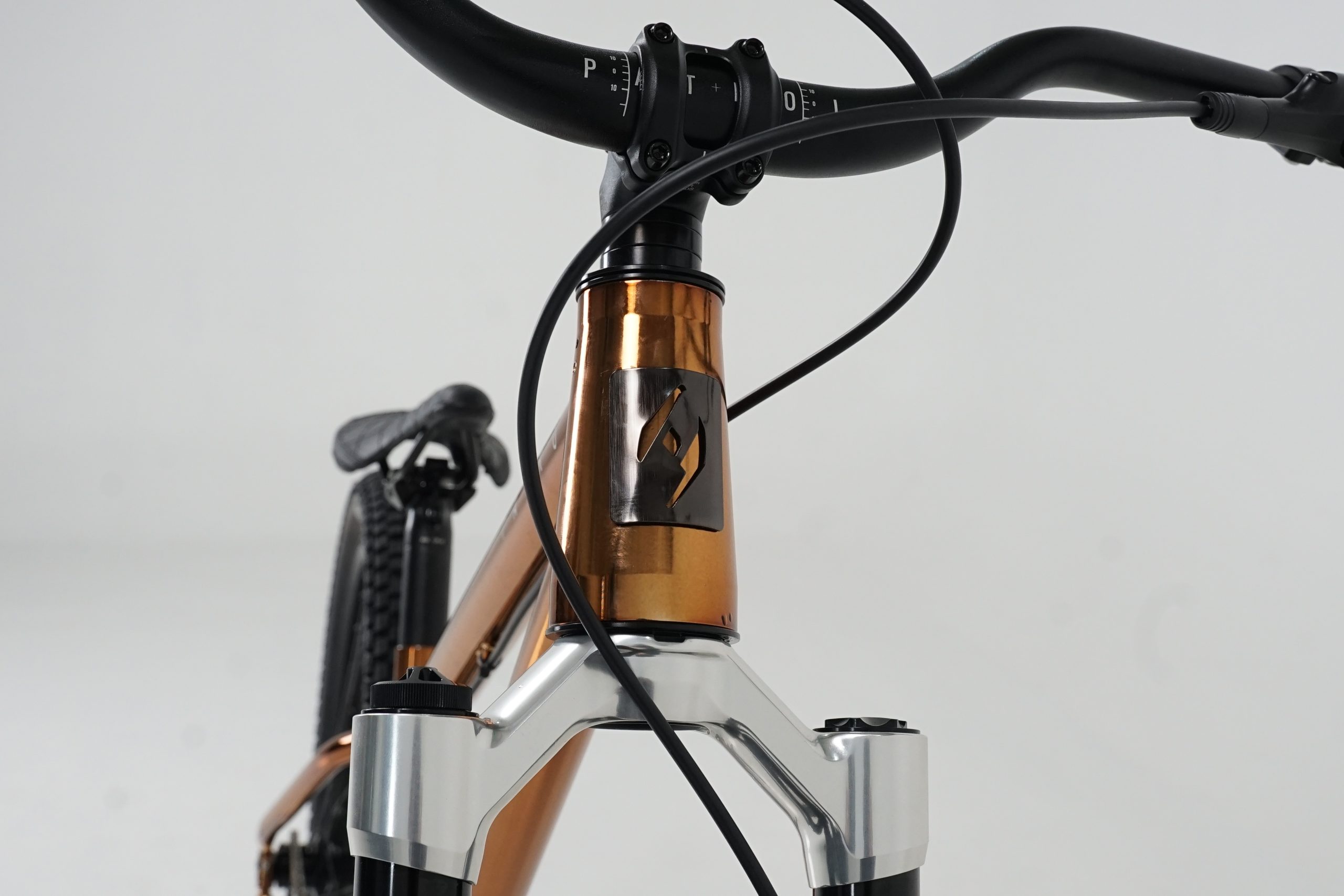

  • Tapered Head Tube
    Strong, stiff, ready for battle. And yep—gyro-system compatible.

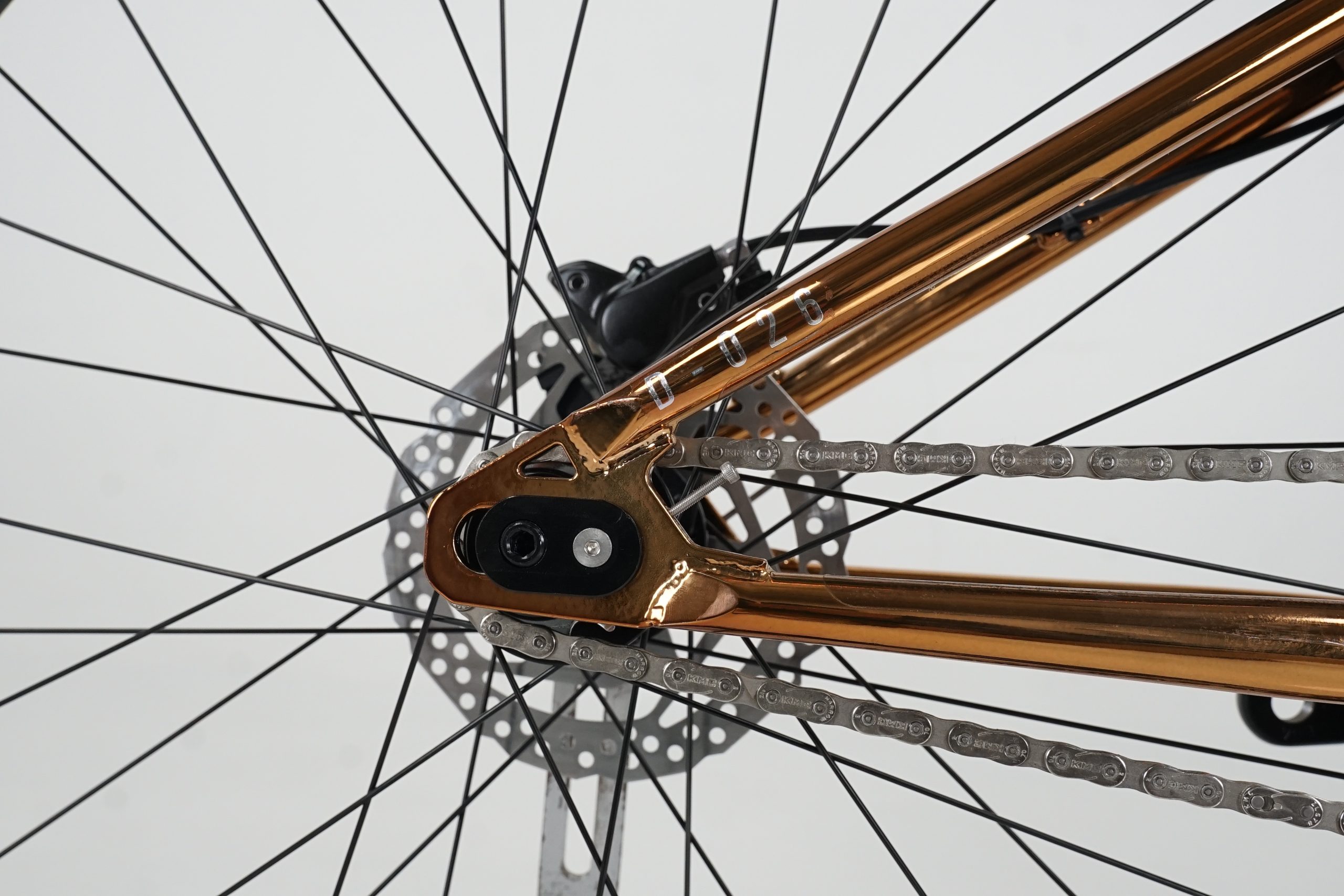

  • Sliding Boost 148 Dropout
    For perfect chain tension and ultimate compatibility. Clean, simple, reliable.
  • Chrome Finish Options
    Not just pretty. Chrome plating is tougher than paint—and it looks absolutely stunningin the sun.
  • Components That Mean Business
    Manitou forks. Single-speed hubs. Maxxis Holy Rollers tires. This is the good stuff—the kind of build that begs you to send it bigger.



 D-026  D-024  D-020
Head Tube Angle
 68.5° 68.5° 68.5°
Head Tube Length
 110 95 95
Top Tube Horizontal
 594 529 443
Reach
 418 365 310
Standover
 623 590 738
Stack
 557 522 432
Seat Tube Length
 310 300 260
Seat Angle
 72.5° 72.6° 72.8°
Bottom Bracket Height
 316 293 255
Bottom Bracket Drop
 -23 -25 -5
Chainstay Length
 388 368 320
Wheelbase
 1058 970 841





 D-026 D-024 D-020
FRAME
 Patrol DJ 26, 4130 chromoly, 12×148 Patrol DJ 24, 4130 chromoly, 12×148 Patrol DJ 20, 4130 chromoly, 12×148
FORK
 Manitou Circus Pro, 100 mm Manitou J-Unit Comp, 80 mm Manitou J-Unit Comp, 80 mm
CRANK
 155 mm alloy, 30T chainring, chromoly spindle 140 mm alloy, 30T chainring, chromoly spindle 114 mm alloy, 30T chainring, chromoly spindle
BRAKES
 SHIMANO MT200, 160MM SHIMANO MT200, 160 MM Clarks, 160mm
WHEELS
 Alexrims DM24, 559×24, Boost Alexrims DM24, 507×24, Boost Alexrims DM24, 406×24, Boost
TYRES
 Maxxis Holy Roller 26×2.40 Maxxis Holy Roller 24×2.40 Maxxis Holy Roller 20×2.20
COLOR
 Black Chrome & Bronze Black Chrome & Bronze Black Chrome & Bronze

*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
