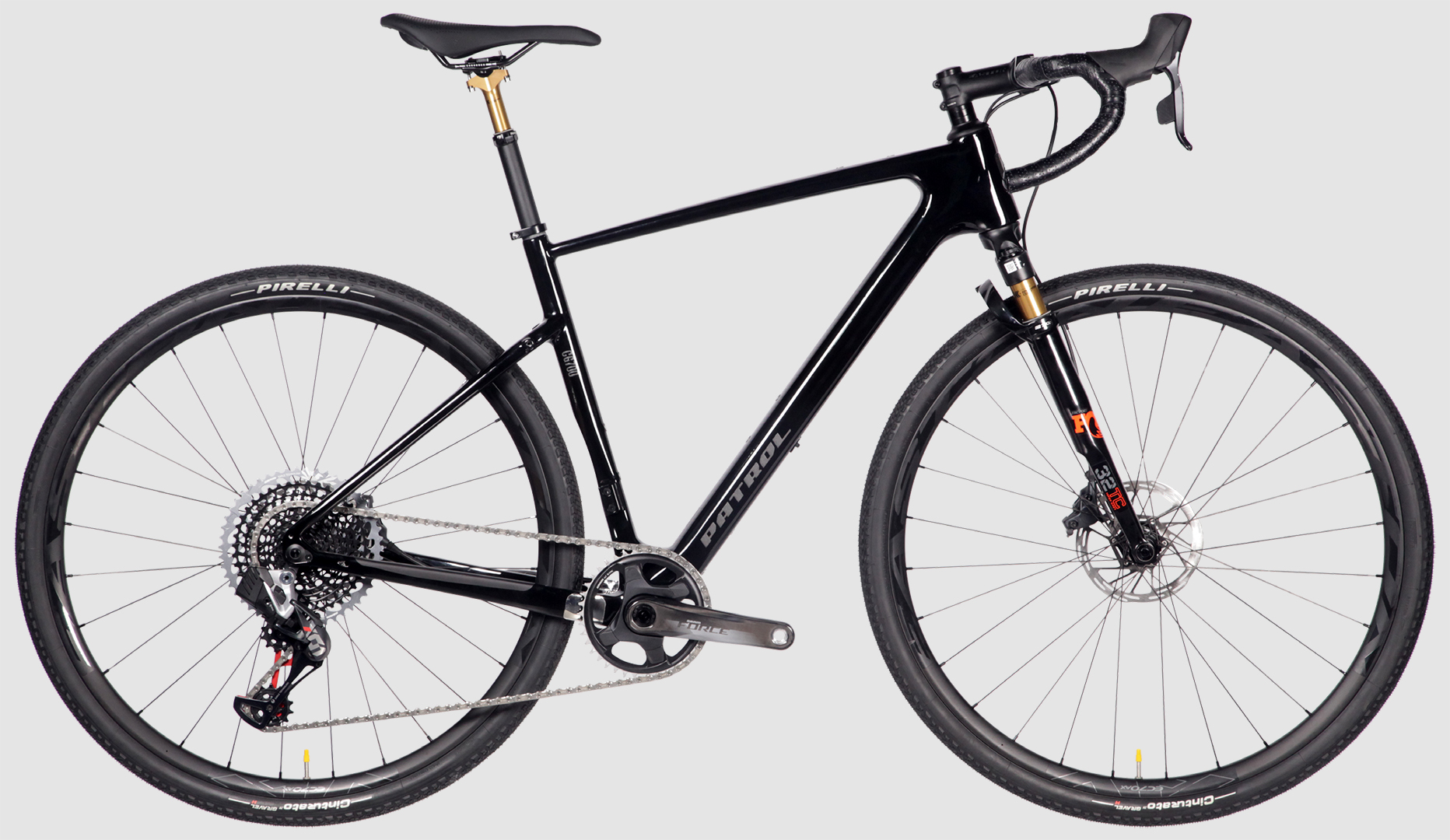

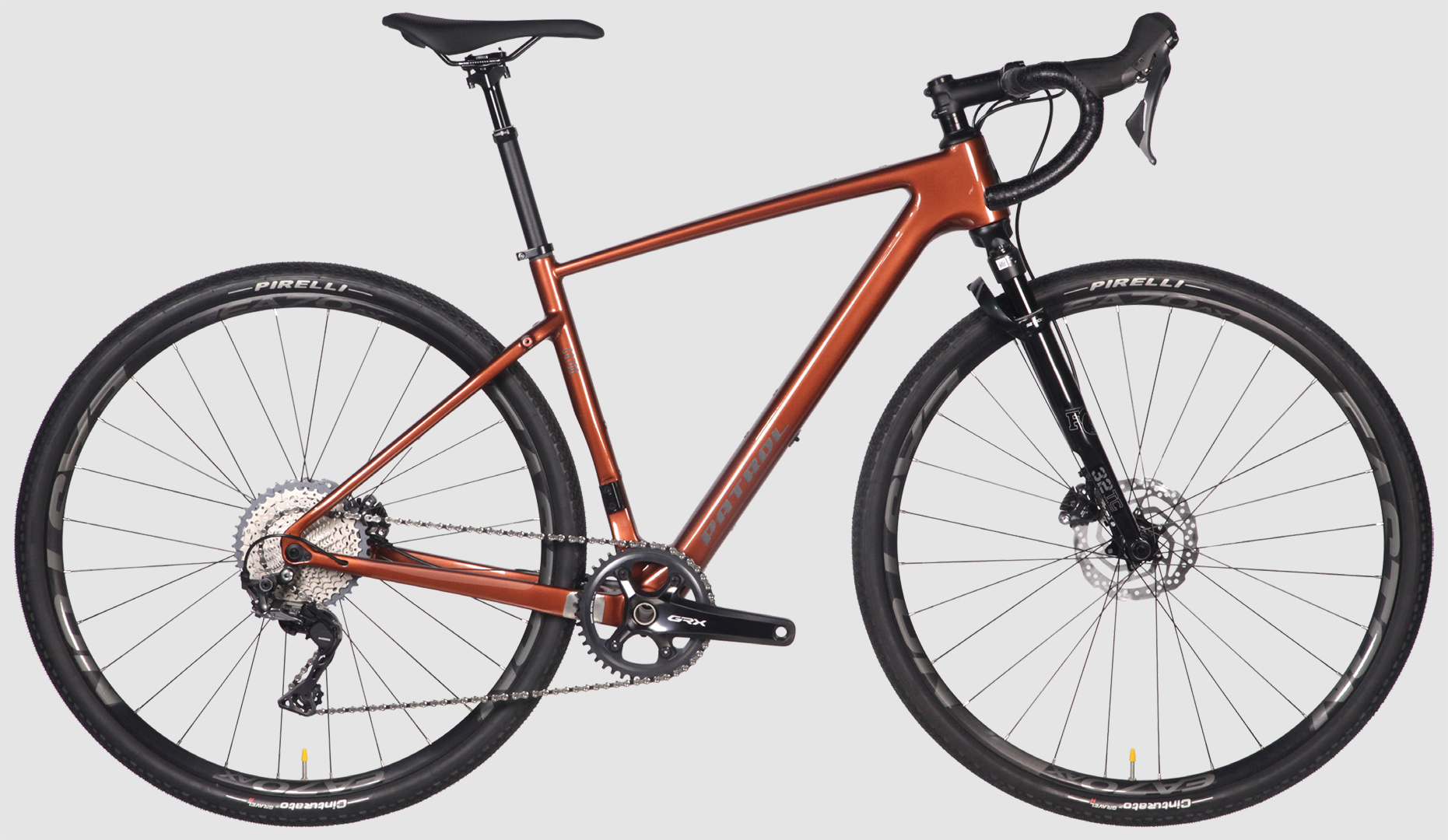

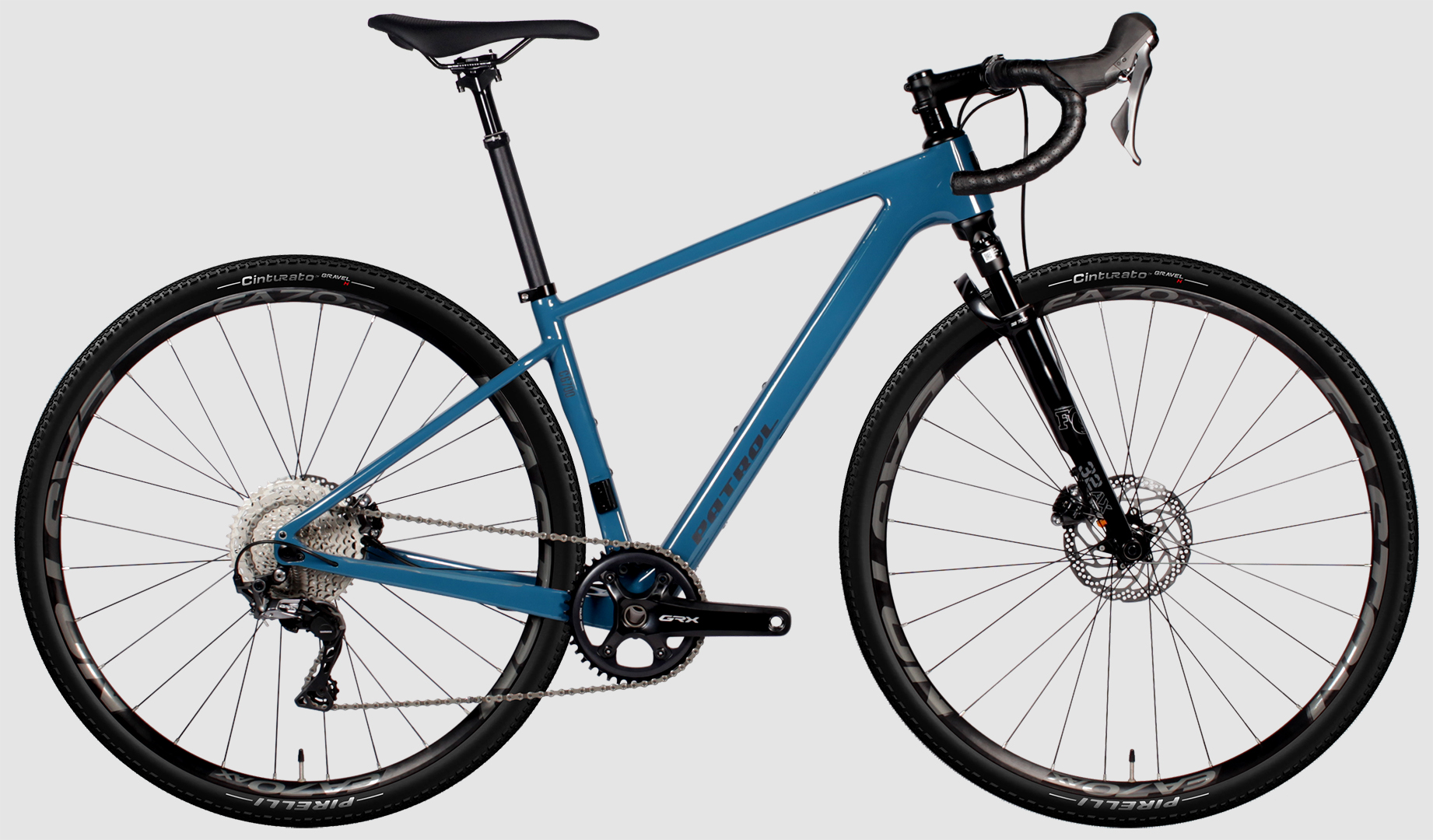

Patrol CG700
If you’re an outdoor enthusiast looking for a new way to experience the trails, look no further than the Patrol CG700! This gravel bike is designed with adventure and off-road capability in mind, making it the perfect choice for all your outdoor excursions. With its lightweight carbon frame, 700c wheels, and Fox gravel suspension, the Patrol CG700 is built to be fast, efficient, and comfortable to ride, making it ideal for weekend adventures, post-work rides, and even commuting through the city. Whether you’re hitting the backcountry or exploring your local urban jungle, the Patrol CG700 is the ultimate bike for effortless, enjoyable riding.
The most versatile bike in the Patrol range. The CG700 gravel bike loves the dirt as much as the asphalt.
Overview
Geometry
Specification
Overview
The Patrol CG700 is built around our custom carbon gravel frame. With suspension corrected geometry, the CG700 sports a 40mm travel Fox suspension fork for ironing out trail shock. The sleek carbon frameset features internal cable routing, stealth dropper post compatibility and plenty of mounts for racks and luggage. Our no-compromise approach to specification means the CG700 gravel bike is built to be durable, comfortable and above all else, fun!
Geometry
| 49 | 52 | 54 | |
|---|---|---|---|
Head Tube Angle |
70.5° | 70.5° | 71° |
Head Tube Length |
95 | 95 | 105 |
Top Tube Horizontal |
539 | 548 | 561 |
Reach |
375 | 383 | 390 |
Standover |
690 | 706 | 742 |
Stack |
566 | 568 | 579 |
Seat Tube Length |
410 | 430 | 470 |
Seat Angle |
73.75° | 73.75° | 73.75° |
Bottom Bracket Height |
276 | 276 | 276 |
Bottom Bracket Drop |
-80 | -80 | -80 |
Chainstay Length |
425 | 425 | 425 |
Wheelbase |
1017 | 1021 | 1027 |
Specification
Patrol CG700 S-Spec |
Patrol CG700 |
|
FRAME |
PATROL carbon gravel, 12×142 mm | PATROL carbon gravel, 12×142 mm |
FORK |
FOX Factory 32 Taper Cast, 40mm travel | FOX Performance, 32 Taper Cast 40mm travel |
HANDLEBAR |
EASTON EC70, 420mm | EASTON EA70, 420mm |
REAR MECH |
SRAM X01 AXS Red, 12s | SHIMANO GRX RX812, 11s |
SHIFTER |
SRAM Force eTap AXS | SHIMANO GRX RX810 |
CHAINSET |
SRAM Force 1 | SHIMANO GRX FC-RX810-1, 42t |
CASSETTE |
SRAM XG-1295 Eagle | SHIMANO SLX M7000, 11s, 11-42t |
WHEELS |
EASTON EC70 AX | EASTON EA70 AX |
TYRES |
PIRELLI Cinturato™ Gravel H, 700×40c | PIRELLI Cinturato™ Gravel H, 700×40c |
SEATPOST |
FOX Transfer SL Factory, 27.2mm, 50mm | FOX Transfer SL Performance, 27.2mm, 50mm |
*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
