Patrol Mountain

Patrol 691 SL

What’s better than a brand-new enduro bike? One that’s been reengineered with insight from world-class riders and outfitted with some of the best components in the game. The Patrol 691 Evo isn’t just a cosmetic refresh — it’s a complete performance overhaul. We’ve gone deep under the surface to refine geometry, enhance handling, and reduce rider fatigue, resulting in a more capable, more responsive, and more aggressive enduro machine built to dominate any trail.

Super Boost rear hub spacing, 1 x 12 drivetrain and 29in wheels. The Patrol 691 SL is made to take on anything!

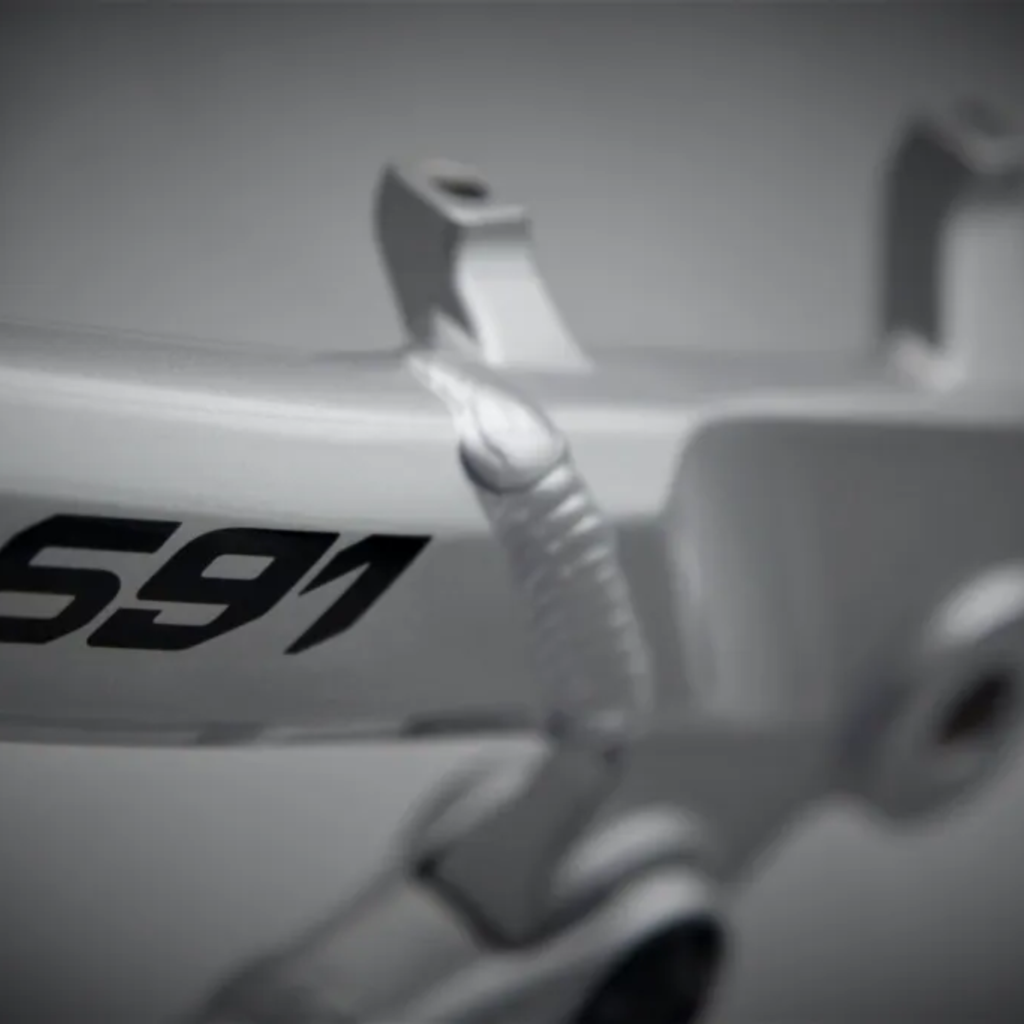

The Patrol 691 SL alloy frameset is engineered with a Super Boost rear hub, giving you greater tire clearance and increased frame stiffness where it matters most. Built for serious trail performance, this design delivers enhanced control, durability, and responsiveness on the toughest terrain.

Small Medium Large X-Large
Head Tube Angle
65° 65° 65° 65°
Head Tube Length
105 110 110 125
Top Tube Horizontal
566 592 612 639
Reach
422 446 466 487
Standover
730 732 735 735
Stack
594 599 599 612
Seat Tube Length
405 432 455 470
Seat Angle
76° 76° 76° 76°
Bottom Bracket Height
356 356 356 356
Bottom Bracket Drop
-12 -12 -12 -12
Chainstay Length
445 445 445 445
Wheelbase
1187 1213 1233 1261
FRAME
PATROL 691 SL , 12×157 Superboost, 150MM
FORK
Rockshox 35 Silver, 160 mm travel. 44mm offset
SHOCK
X Fusion 02 Pro RLR, 8.5×2.5
REAR MECH
SRAM SX EAGLE 12s
SHIFTER
SRAM SX EAGLE 12s
CHAINSET
Truvatif Descendant, Alumunium, Eagle, Superboost, DUB, 32T
BRAKES
Shimano MT420
WHEELS
Patrol Rims 35mm with Shimano SLX Superboost Hub
TYRES
MAXXIS
SEATPOST
KSP900-I, 30.9mm, 150mm (S/M) – 170mm (L/XL)
SEAT
SDG
GRIPS
SDG
BAR
Patrol Enduro
STEM
Patrol Enduro
PRICE
$2999

*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
