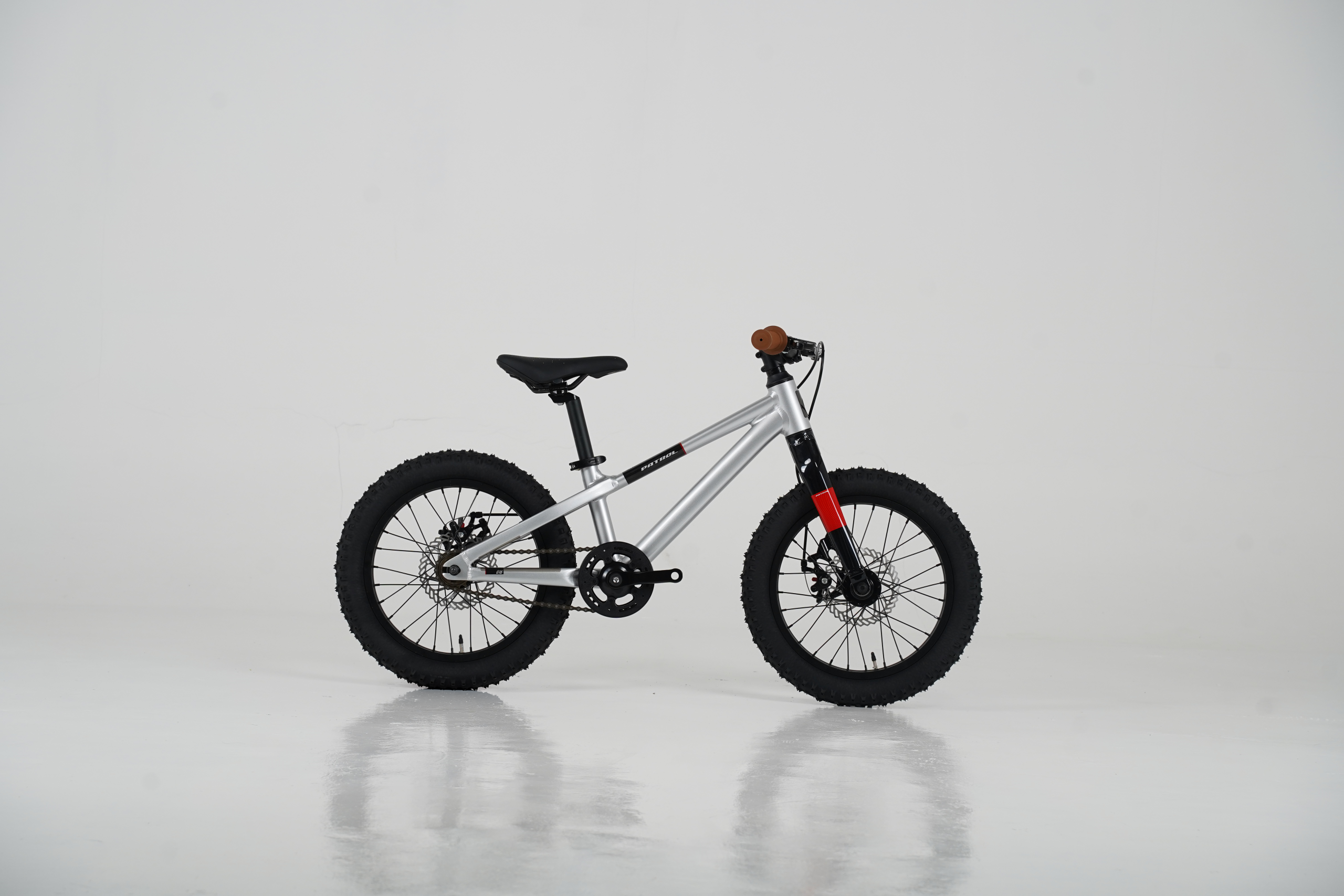

The smallest bike in our lineup has the biggest job, giving new riders the confidence they need to begin their two-wheeled adventure. This year sees updates to the 016, making it an even better choice for young riders, while staying true to its mountain bike DNA.
| Size | |
|---|---|
Head Tube Angle |
70° |
Head Tube Length |
100 |
Top Tube Horizontal |
380 |
Reach |
274 |
Standover |
391 |
Stack |
348 |
Seat Tube Length |
225 |
Seat Angle |
73° |
Bottom Bracket Height |
205 |
Bottom Bracket Drop |
0 |
Chainstay Length |
290 |
Wheelbase |
707 |

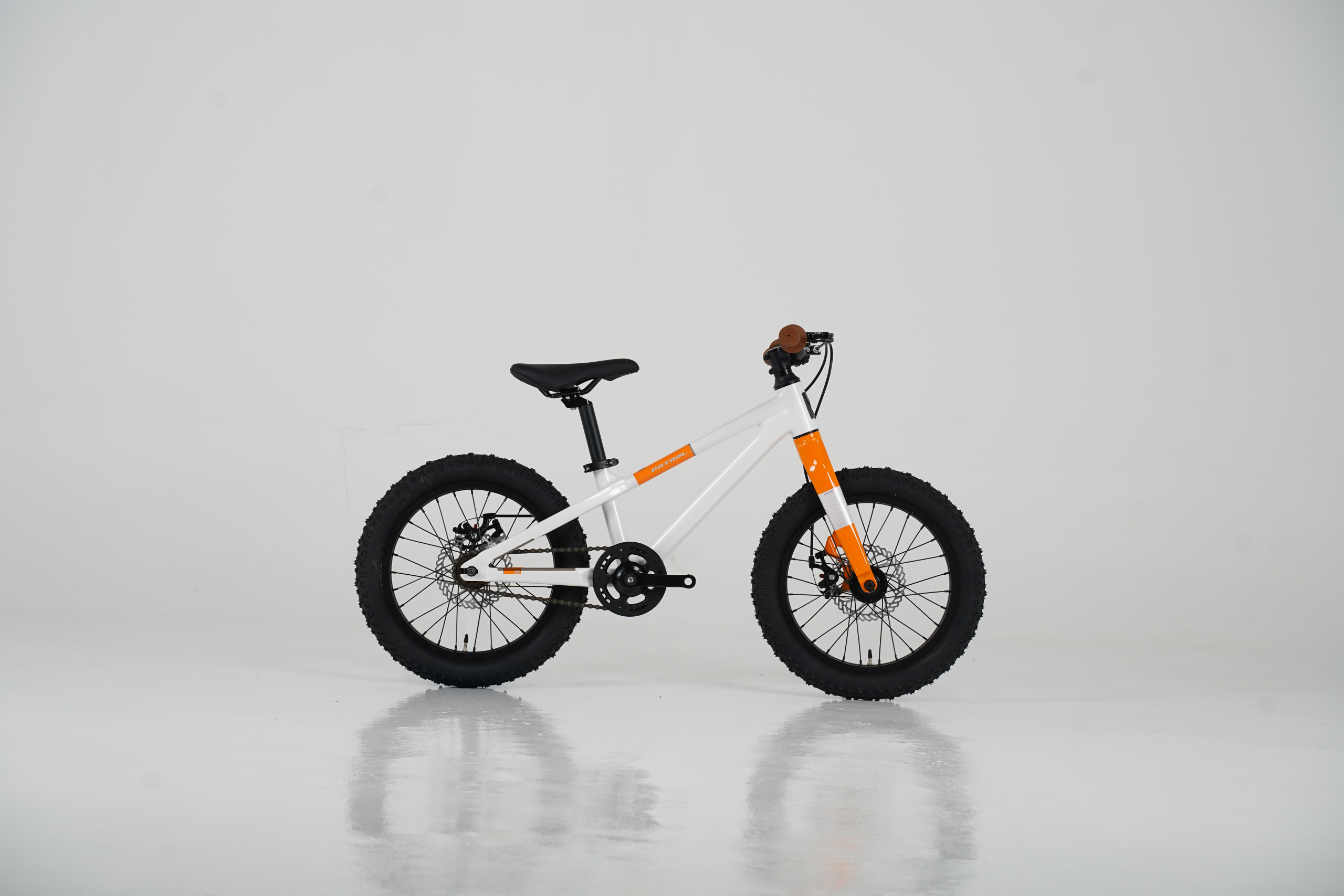

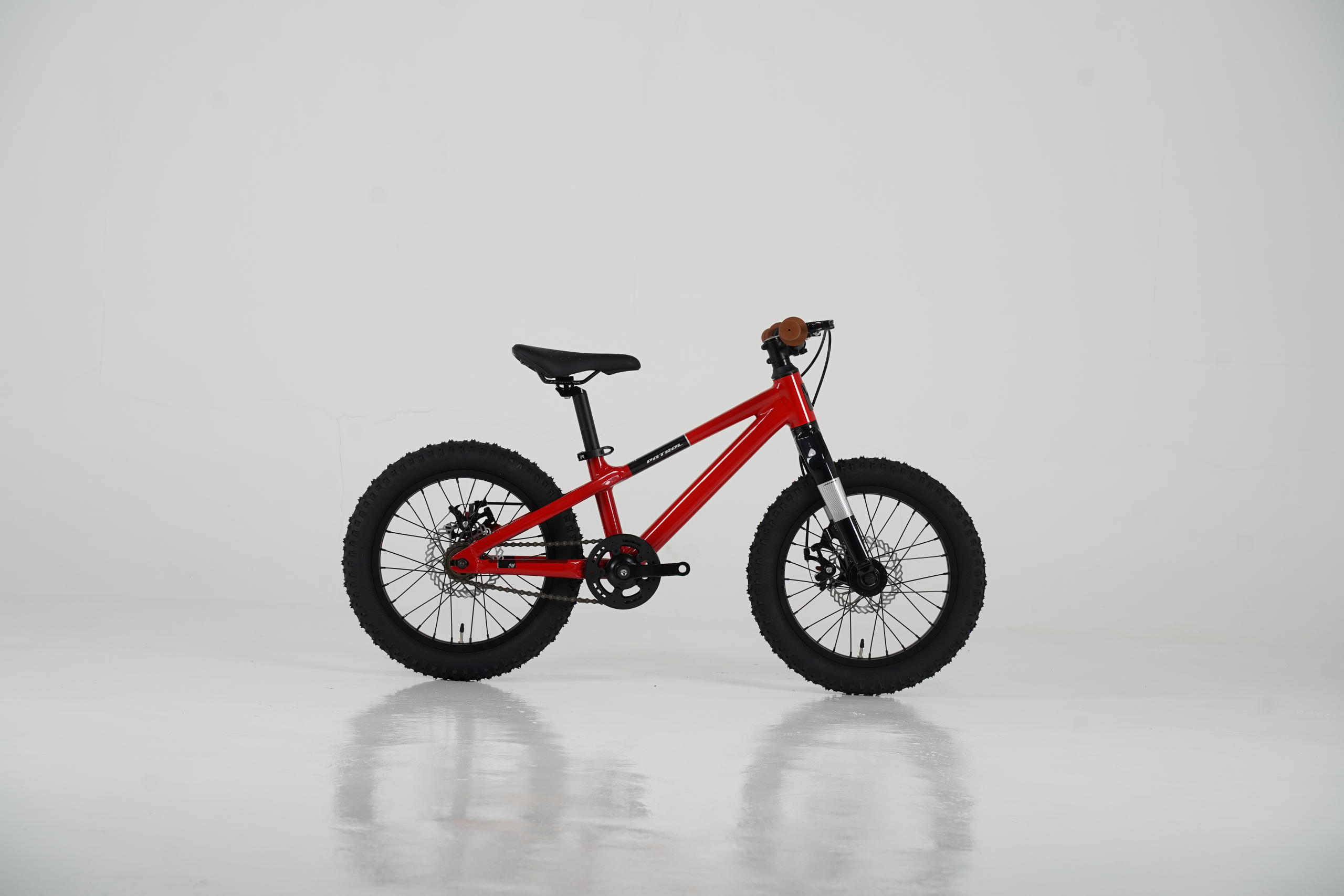

Patrol 016 |
|

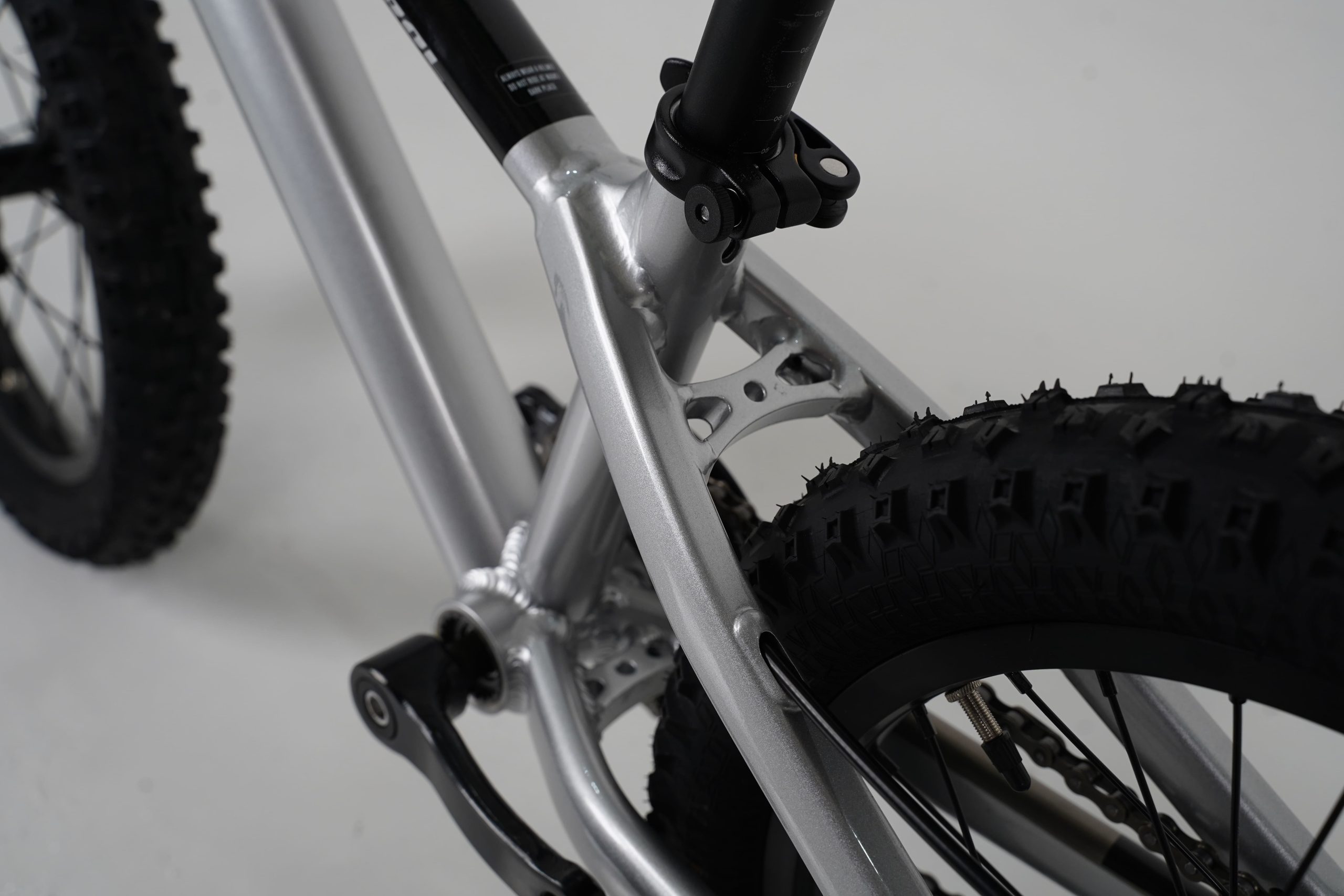

FRAME |
PATROL alloy XC 16, 10 x 114mm |

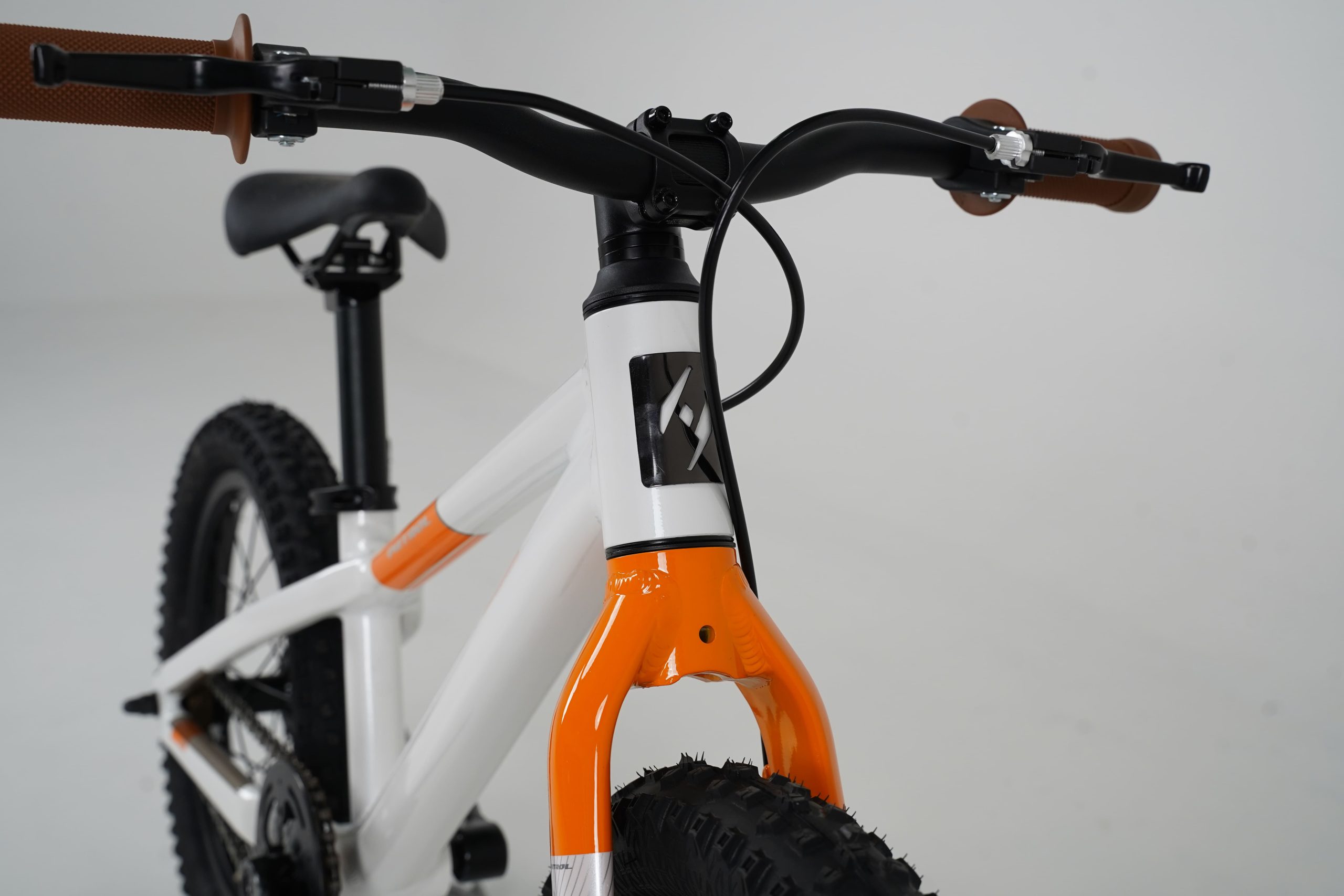

FORK |
Rigid alloy |
SPROCKET |
Steel 16t |
COLOURS |
Anodized Coral Red, Vogue Silver, Vivid Crystal Blue, Anodized Snow White |

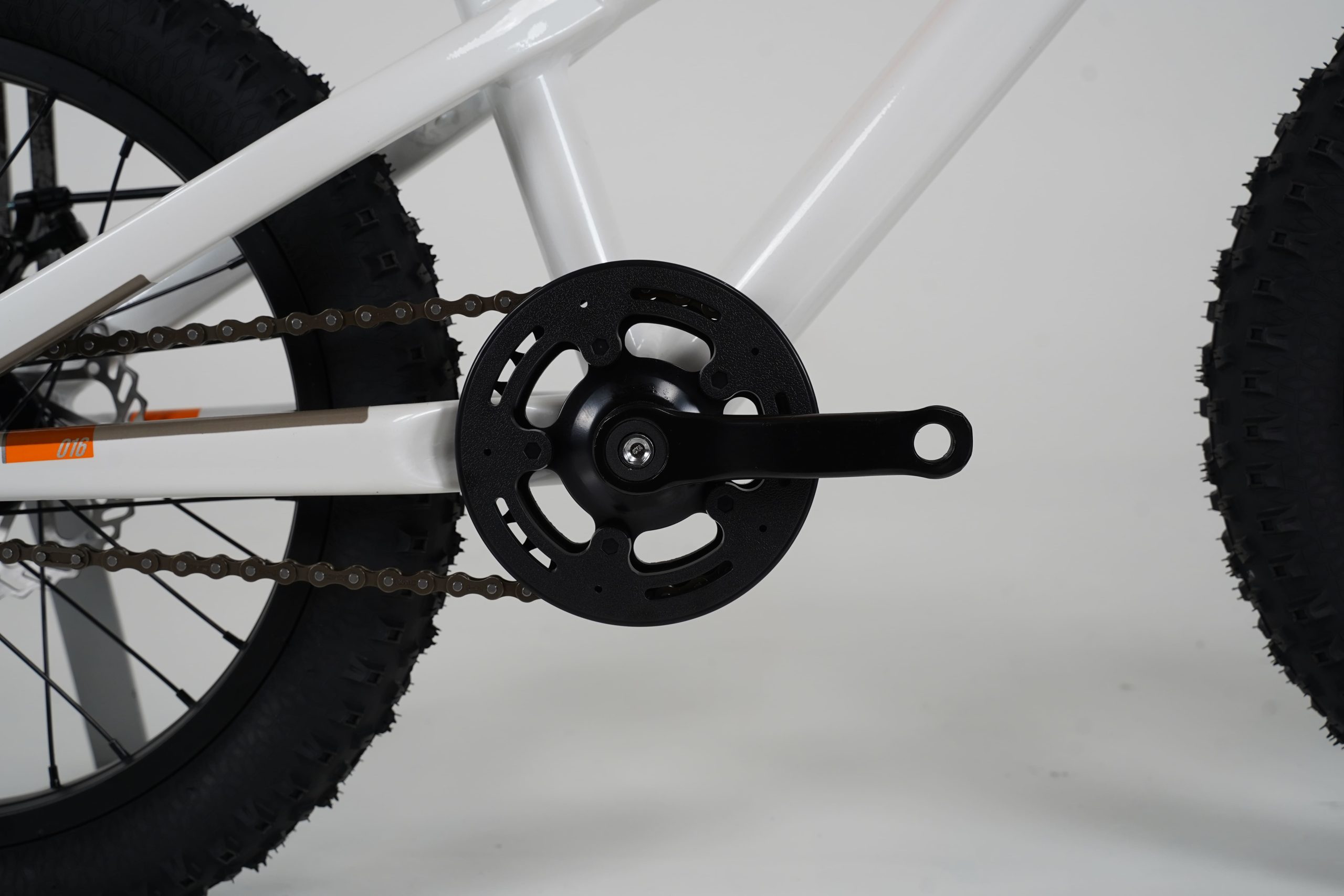

CHAINSET |
Steel 102 mm crank, steel 28T chainring |
WEIGHT |
7,60 Kg |

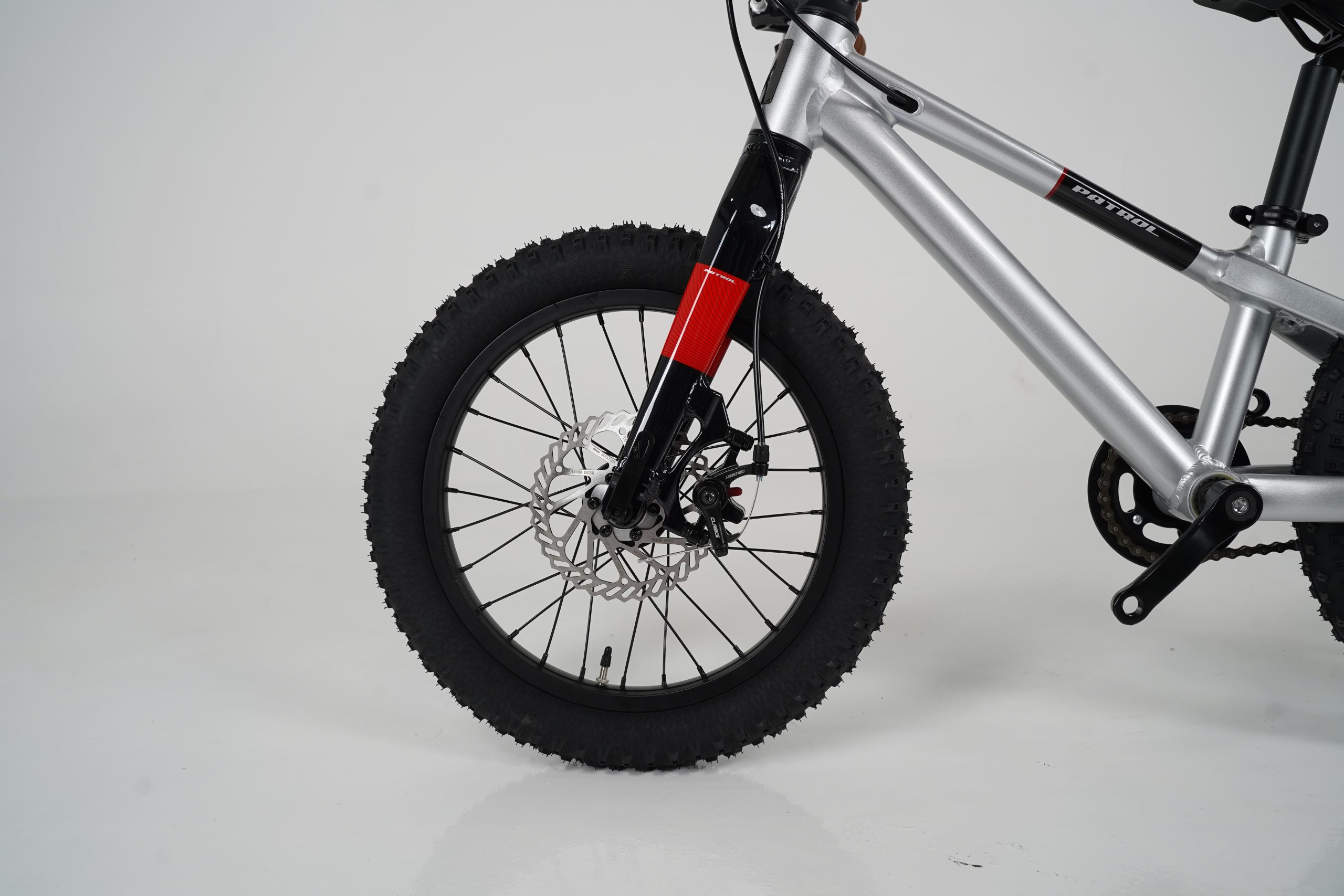

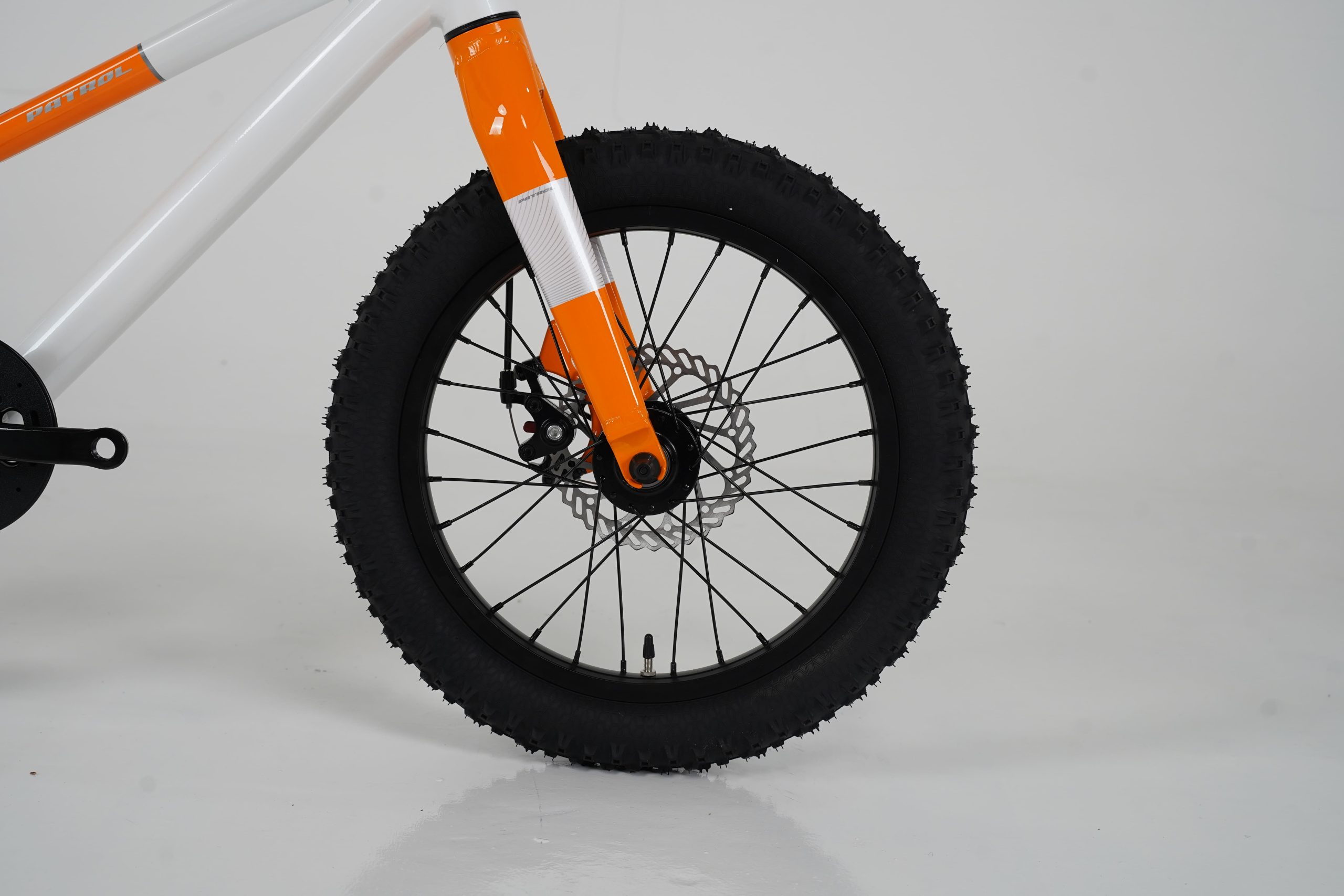

BRAKES |
CLARKS CMD-21 disk brakes |
WHEELS |
PATROL, alloy, 28h |
TYRES |
Innova, 16×2.25 |
*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
