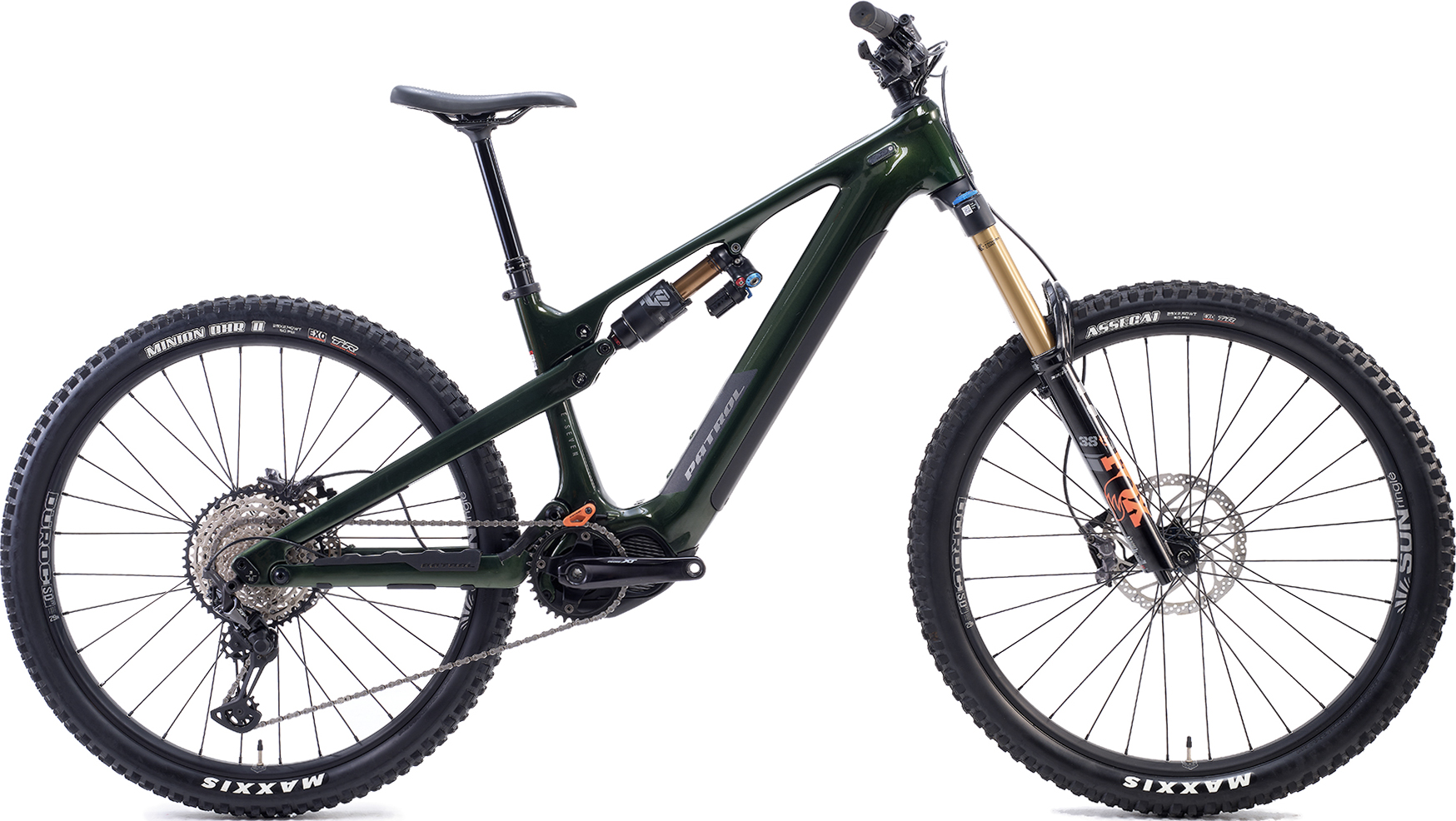

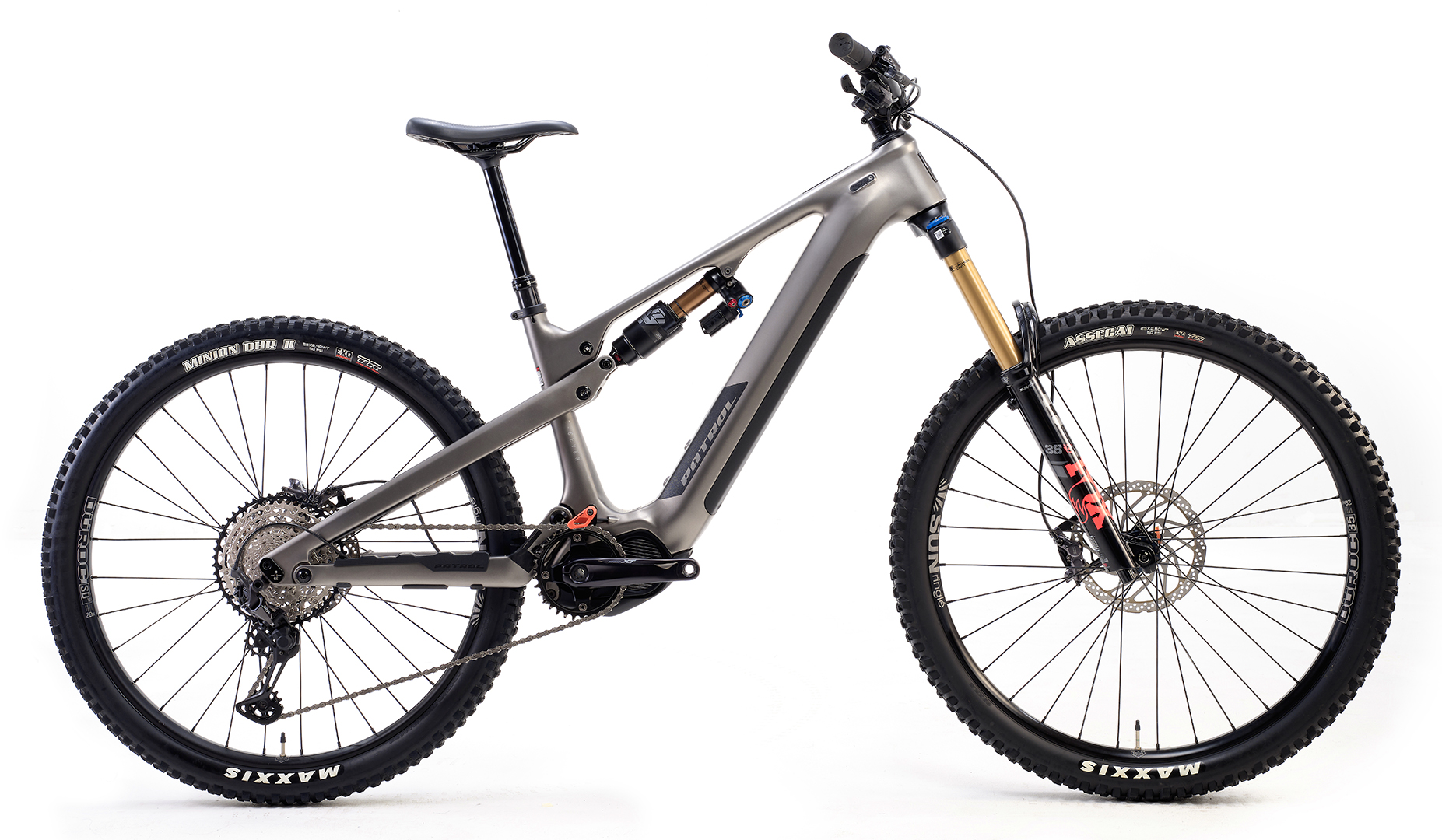

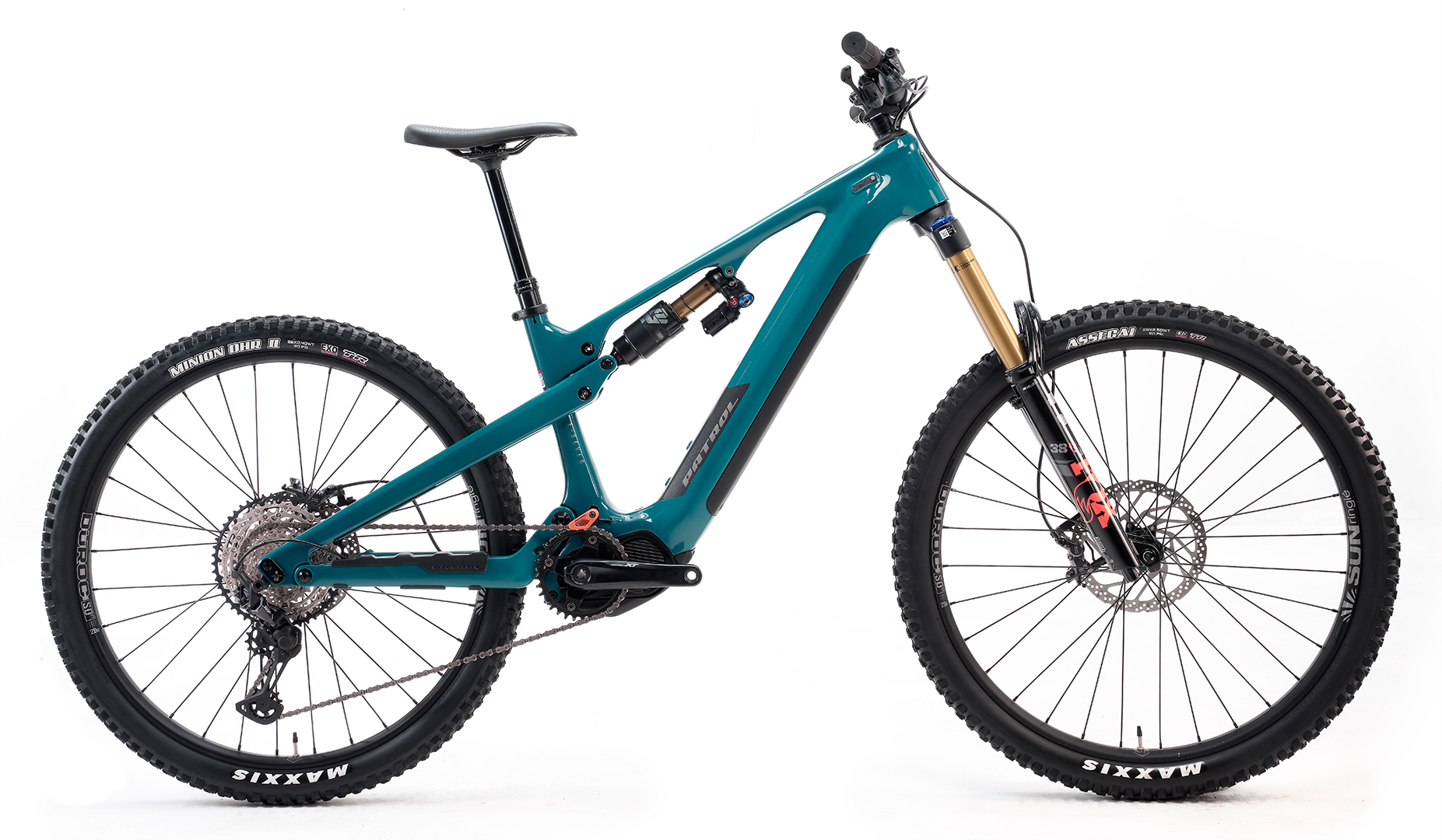

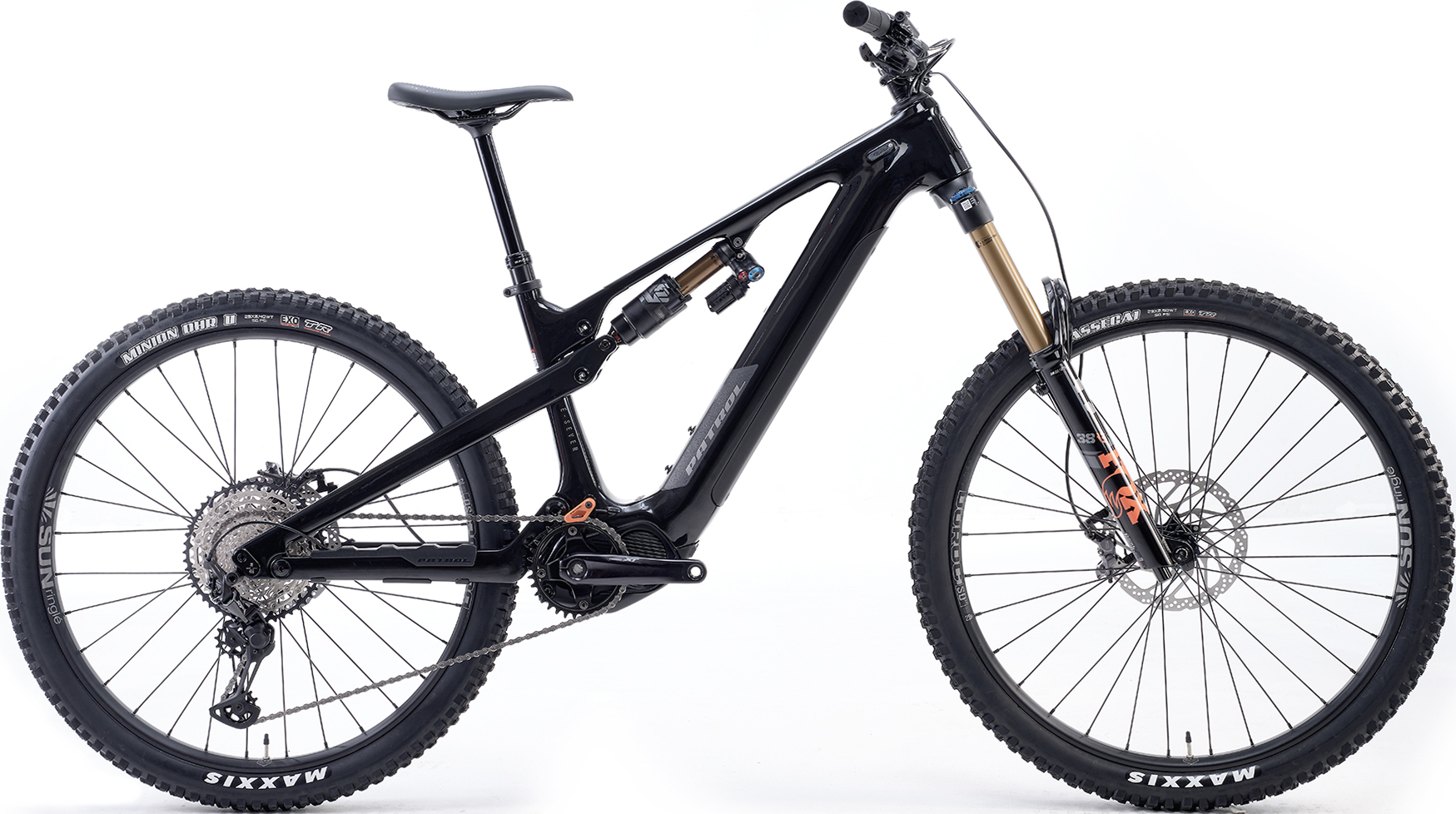

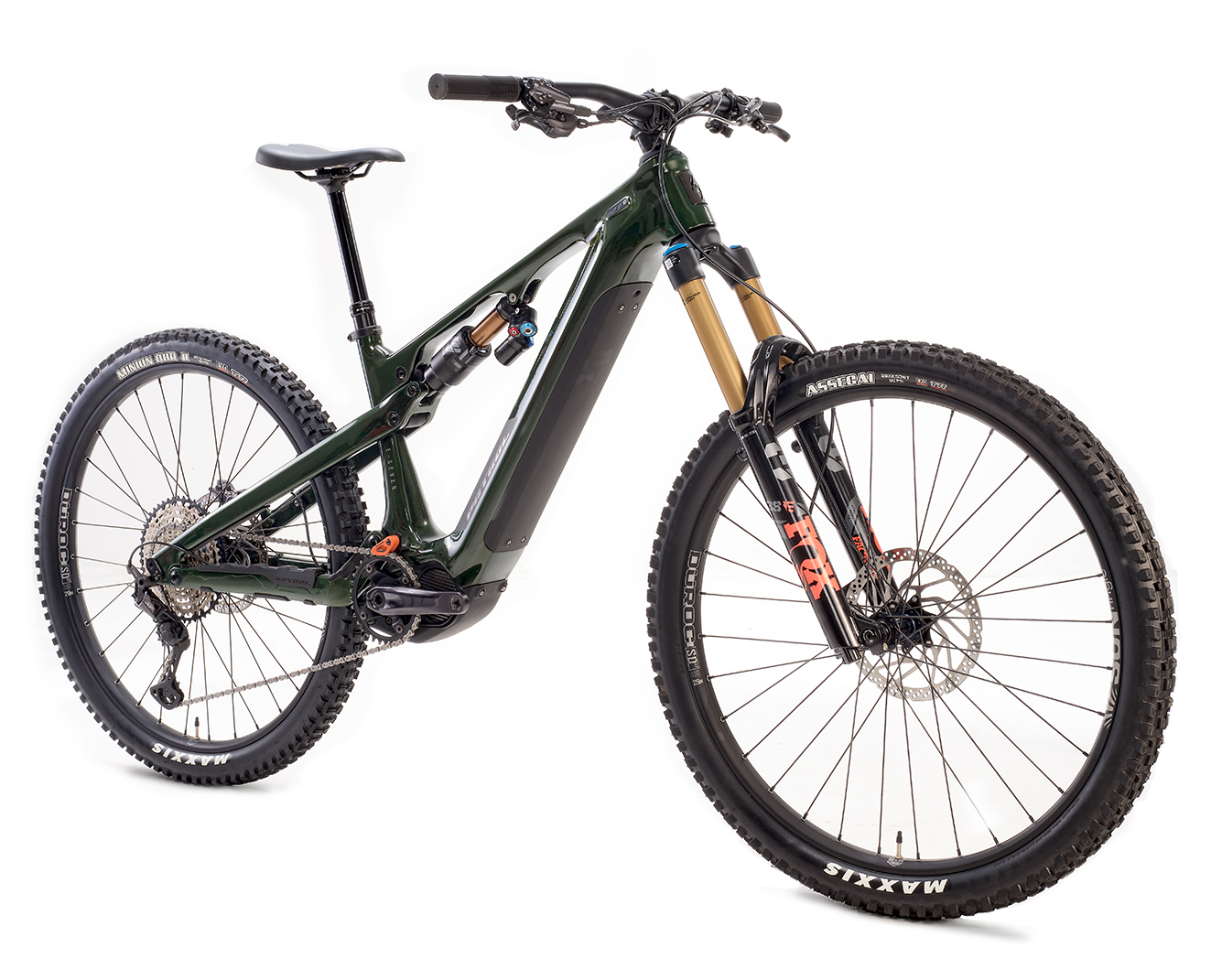

Patrol E-Seven
Not only is the Patrol e-Seven an all-new model, it’s their first-ever full carbon eMTB, too. With a monstrous 170mm travel and stout SuperBoost rear end, it looks like an absolute trail crusher, with a few clever features that help it stand out…
Full Carbon Frame
100% carbon fibre construction is a first for our eMTB range. The Patrol E-Seven’s durable chassis uses carbon fibre for both front and rear triangles and our unique motor brace ensures reliability.

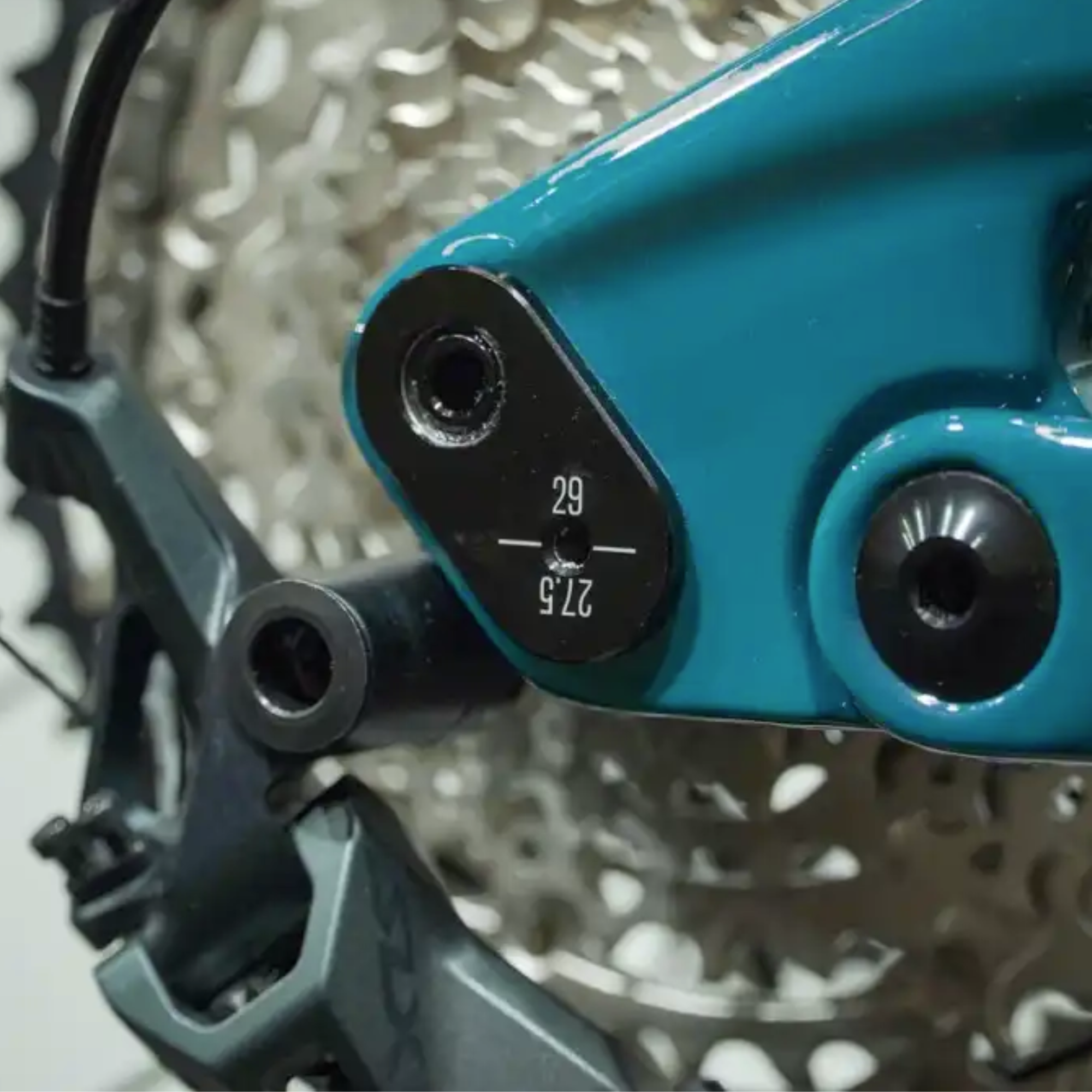

Mullet Ready
The Patrol E-Seven is the first Patrol to come with a mullet flip-chip as standard. This simple option allows you to swap wheel sizes easily without upsetting geometry or handling.

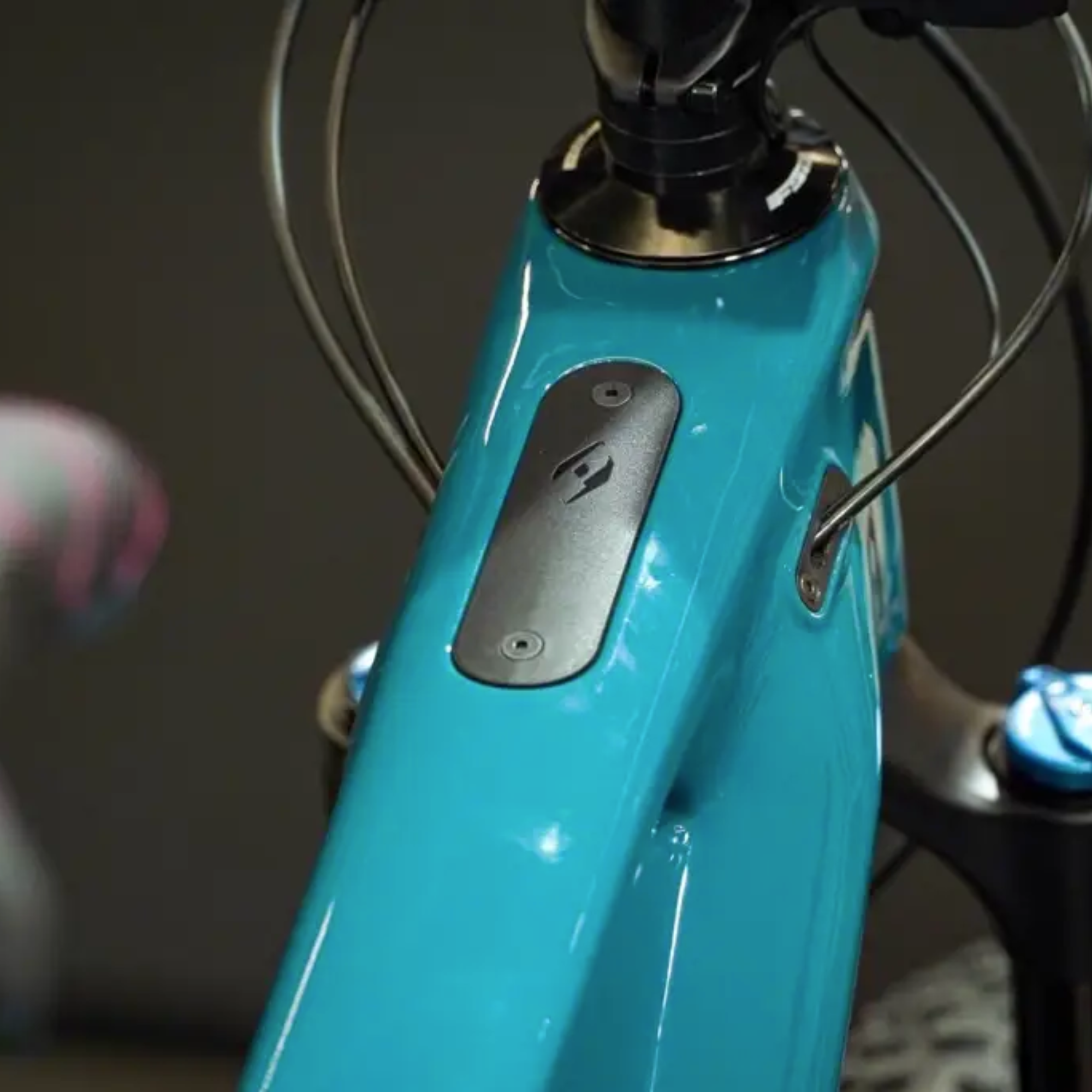

One More Ride
neatly hidden into the top tube of the E-Seven is a spare rear mech hanger so you never have to worry about being stranded in the middle of an adventure.

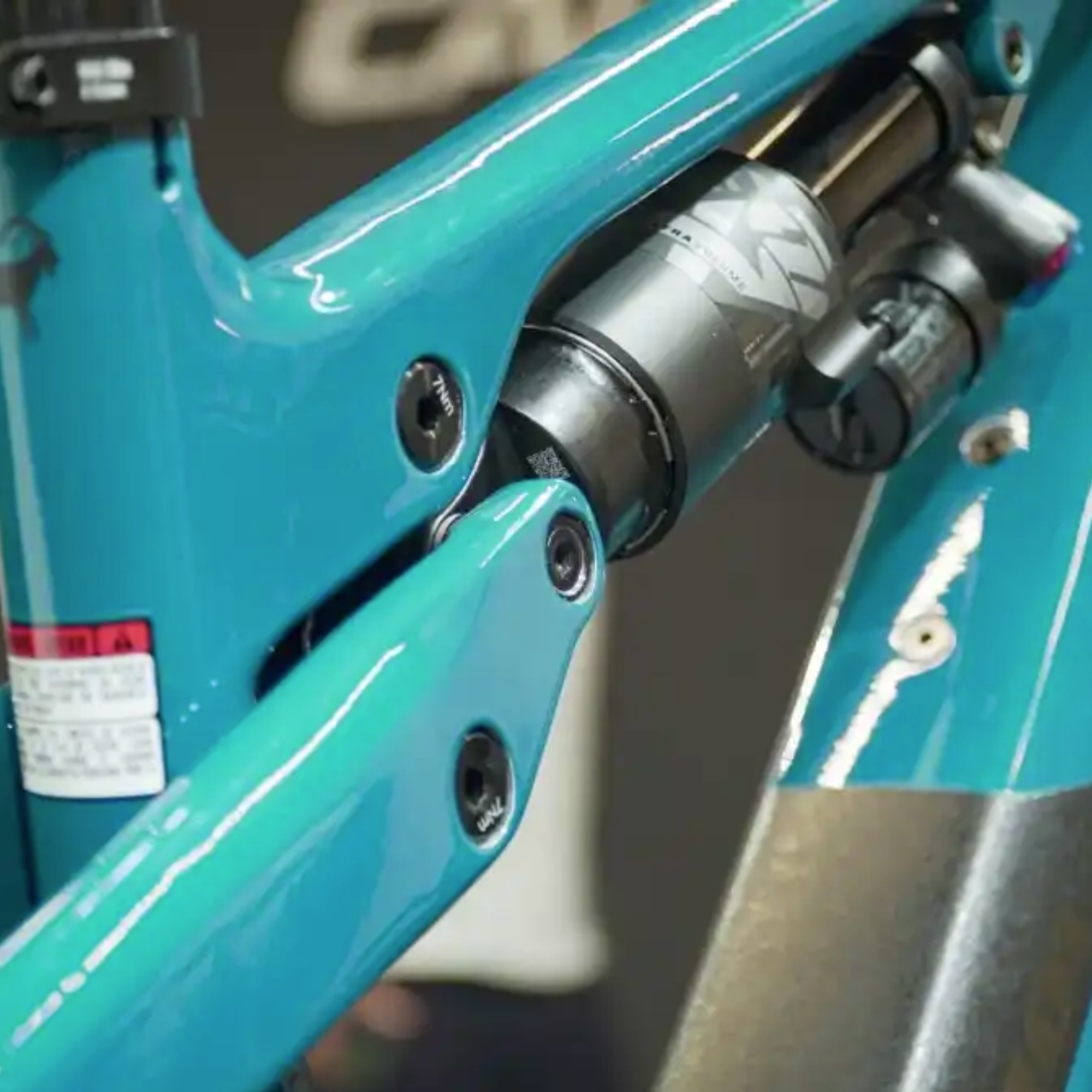

170mm traveL, New Kinematic
Our engineers have employed our novel ‘hidden link’ suspension system, utilizing a completely revamped suspension kinematic. This might be the most playful 170mm travel eMTB we’ve ever made!

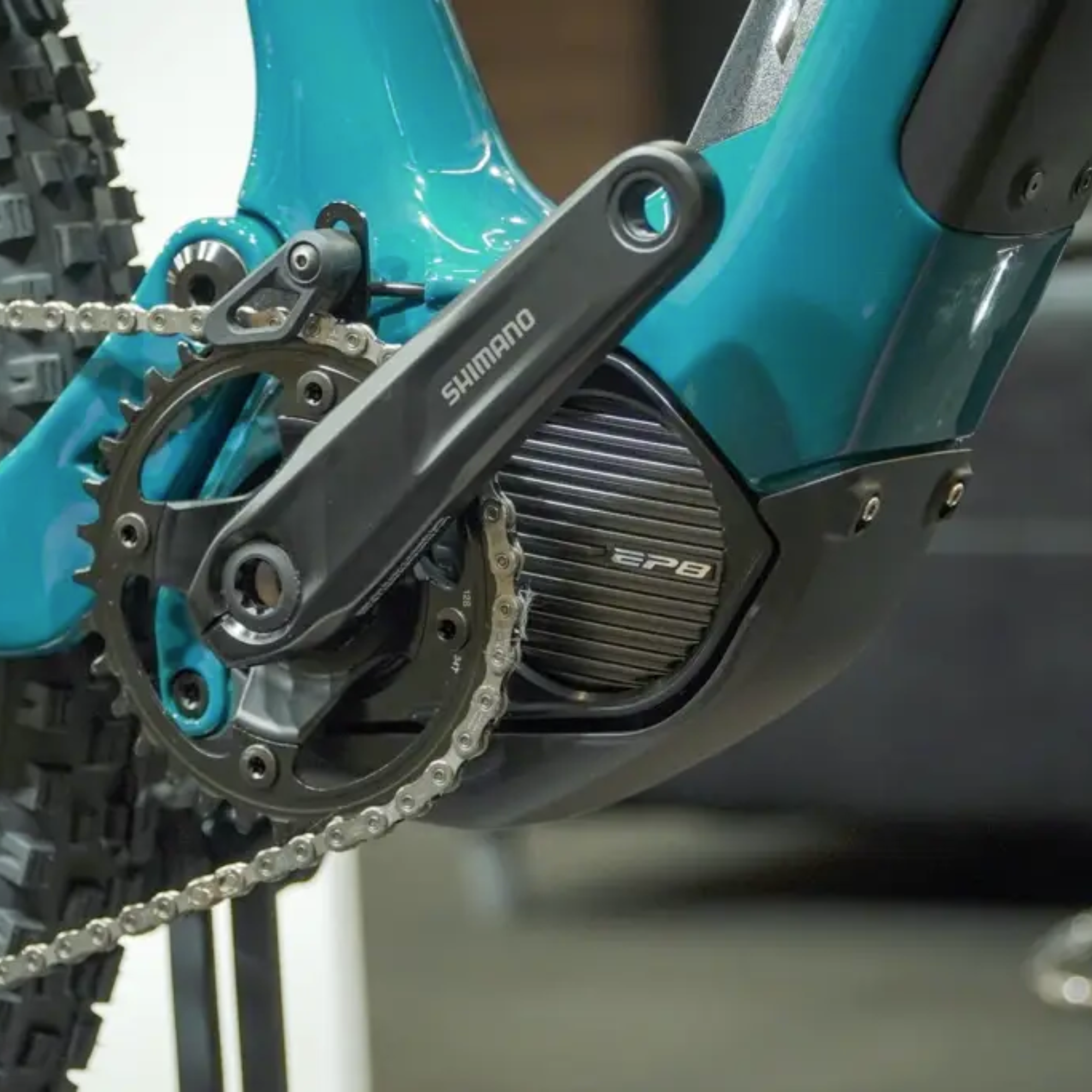

Shimano EP801
The Shimano EP801 drive system delivers the 85Nm of torque and Shimano’s unwavering reliability with new smart functions and an updated handlebar control unit.
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
Head Tube Angle |
63.5° | 63.5° | 63.5° | 63.5° |
Head Tube Length |
110 | 115 | 120 | 125 |
Top Tube Horizontal |
587 | 613 | 634 | 655 |
Reach |
450 | 475 | 495 | 515 |
Standover |
718 | 724 | 725 | 726 |
Stack |
610 | 614 | 619 | 623 |
Seat Tube Length |
390 | 404 | 430 | 460 |
Seat Angle |
75° | 75° | 75° | 75° |
Bottom Bracket Height |
355 | 355 | 355 | 355 |
Bottom Bracket Drop |
-20 | -20 | -20 | -20 |
Chainstay Length |
460 | 460 | 460 | 460 |
Wheelbase |
1271 | 1298 | 1320 | 1342 |
Patrol E-Seven |
Patrol E-Seven S |
|
FRAME |
PATROL carbon electric freeride, 12×157 mm, 170mm travel | PATROL carbon electric freeride, 12×157 mm, 170mm travel |
FORK |
FOX 38 E Performance, 180mm travel | FOX 38 E Factory, 180mm travel |
SHOCK |
FOX Float X2 Performance, 230×65 | FOX Float X2 Factory, 230×65 |
DROPPER |
X-FUSION Manic, 34.9mm, 150mm | X-FUSION Manic, 34.9mm, 150mm |
MOTOR |
SHIMANO DU-EP801 | SHIMANO DU-EP801 |
BATTERY |
SHIMANO BT-EN806, 630Wh | SHIMANO BT-EN806, 630Wh |
REAR MECH |
SHIMANO SLX M7100, 12s | SHIMANO Deore XT M8100, 12s |
SHIFTER |
SHIMANO SLX M7100-R |
SHIMANO Deore XT M8100-R |
CHAINSET |
SHIMANO FC-EM600 | SHIMANO Deore XT FC-M8150 |
CASSETTE |
SHIMANO SLX M7100, 12s, 10-51t | SHIMANO SLX M7100, 12s, 10-51t |
BRAKES |
SHIMANO MT420, 4-piston F/R | SHIMANO Deore XT BR-M8120, 4-piston F/R |
TYRES |
Maxxis Assegai 29×2.50 front, Maxxis Minion DHRII, 29×2.4 rear. | Maxxis Assegai 29×2.50 front, Maxxis Minion DHRII, 29×2.4 rear. |
*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
