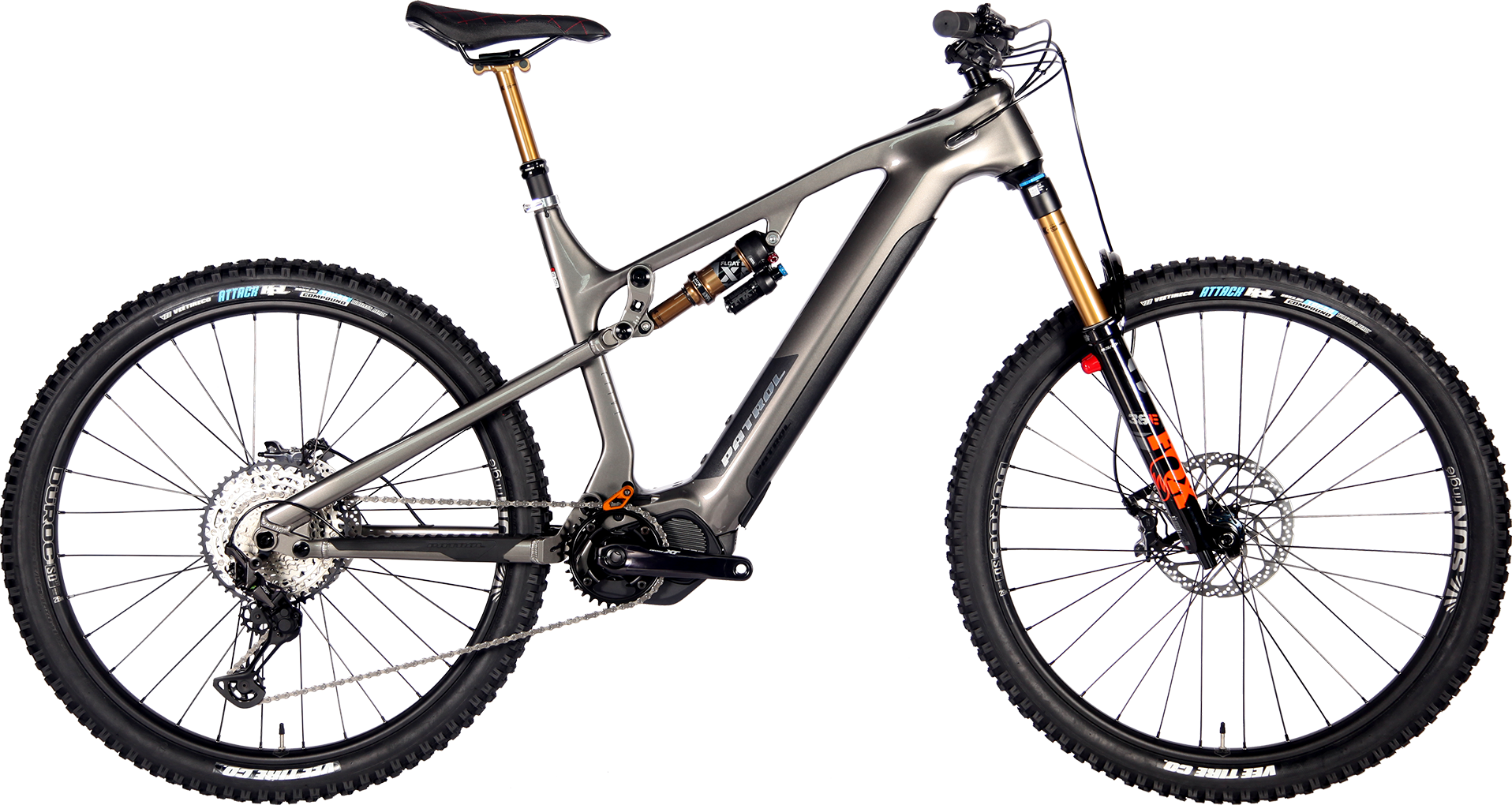

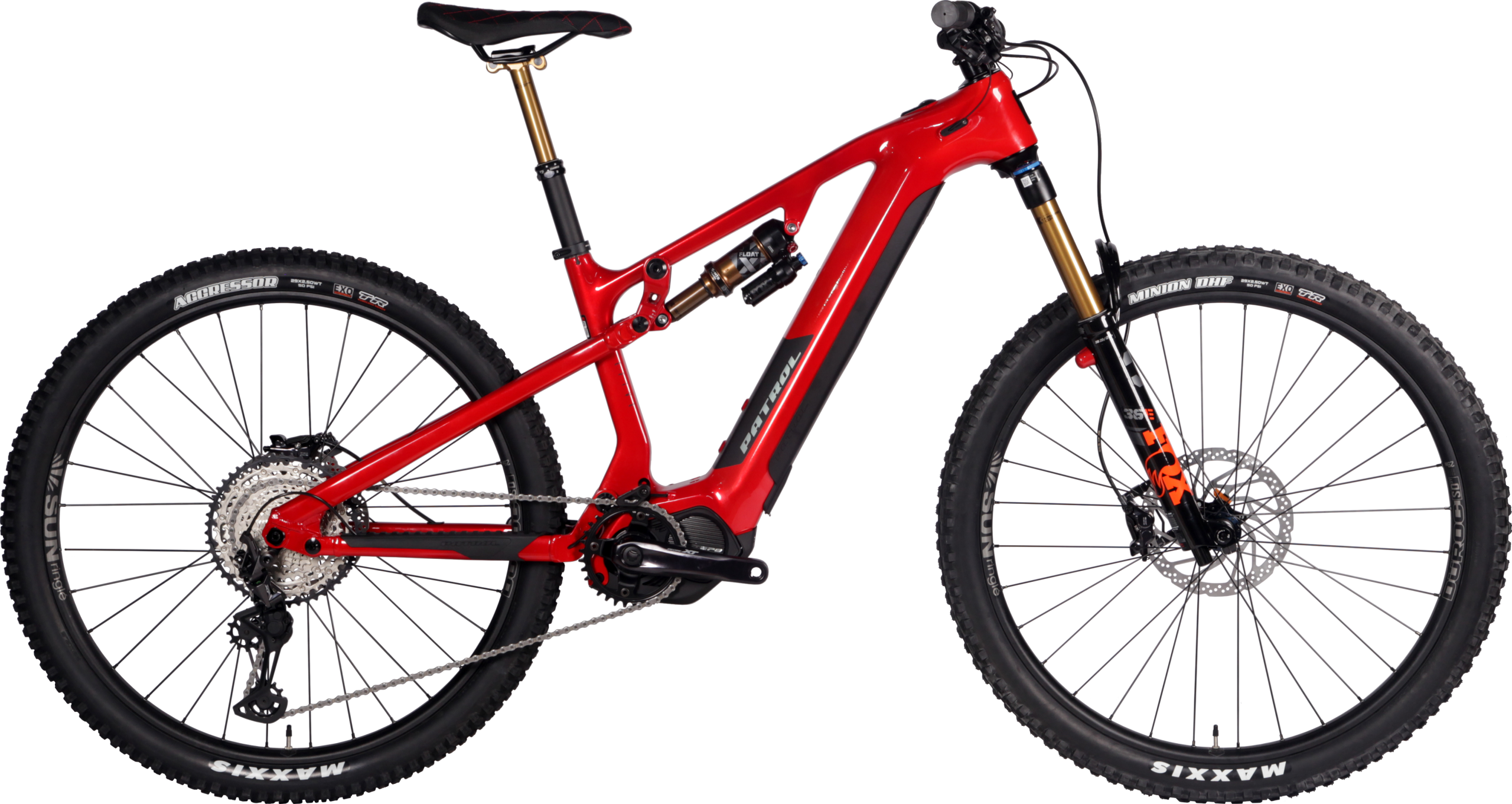

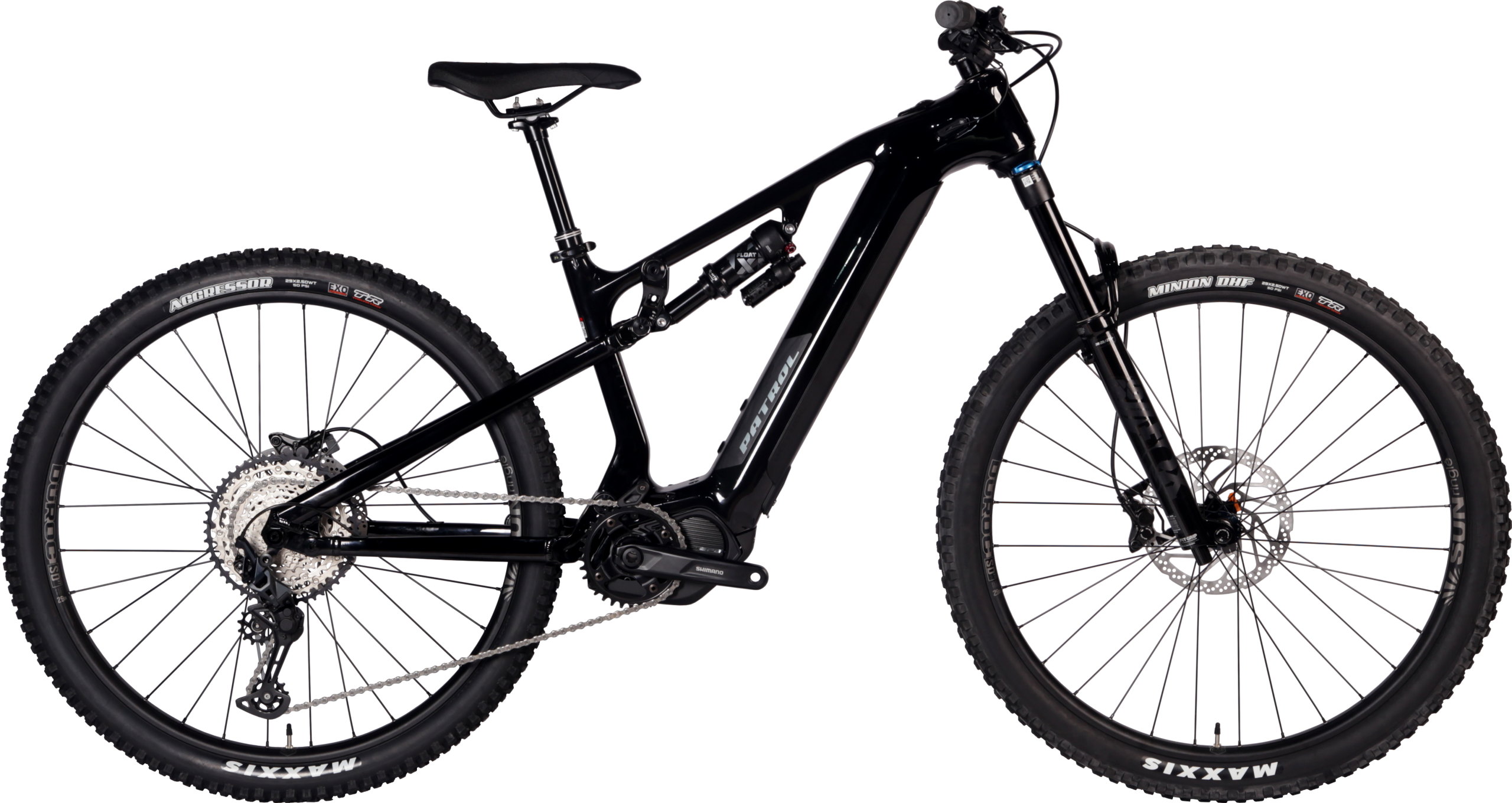

Patrol E-five
The all-new Patrol E-Five is our first ever trail eMTB. Built around a custom developed carbon fibre frameset with modern trail-ready geometry. The E-Five is for riders who enjoy riding uphill as much as they do riding back down again.
FlIp Chip Technology
We’ve updated our progressive suspension platform to include new flip-chip technology. This simple adjustment transforms the E-Five from a mild-mannered trail explorer to an all-mountain flyer
New Carbon Frame
Introducing the 5-Series – a revolutionary new genre of e-mountain bike. For this trail-specific platform, we set out to create a no-compromise frame. Utilizing carbon fiber for the main triangle, we were able to seamlessly integrate a complete Shimano STEP EP8 motor and battery system, while still providing ample space for a bottle cage. The result is a bike that is not only lightweight and durable, but also fully optimized for the ultimate trail-riding experience. The 5-Series is the ultimate blend of form and function, pushing the boundaries of what’s possible in e-mountain biking.
Shimano 630Wh battery
You should be able to enjoy your ride and not worry about how much power you have left. Our new carbon frameset allowed us to incorporate the latest Shimano BT8036 battery for 630Wh of peace of mind.
Our new carbon construction combines a complete Shimano EP8 motor, battery and control system, with a sleek chassis providing 130mm of rear-wheel travel matched with 150mm travel upfront. To ensure an agile riding character our engineers have located the 630Wh Shimano BT8035 battery in a low position to ensure a balanced centre of gravity for fast direction changes. The powerful Shimano EP8 motor provides 85nm of torque, is fully customisable via the Shimano E-Tube application, and has the option to switch between riding profiles on the trail.
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
Head Tube Angle |
65.5° | 65.5° | 65.5° | 65.5° |
Head Tube Length |
105 | 105 | 110 | 115 |
Top Tube Horizontal |
574 | 605 | 626 | 647 |
Reach |
430 | 460 | 480 | 500 |
Standover |
724 | 725 | 726 | 732 |
Stack |
621 | 621 | 625 | 630 |
Seat Tube Length |
390 | 410 | 450 | 492 |
Seat Angle |
76.9° | 76.9° | 76.9° | 76.9° |
Bottom Bracket Height |
345 | 345 | 345 | 345 |
Bottom Bracket Drop |
-30 | -30 | -30 | -30 |
Chainstay Length |
465 | 465 | 465 | 465 |
Wheelbase |
1212 | 1242 | 1264 | 1286 |
Patrol E-Five S-Spec |
Patrol E-Five |
|
FRAME |
PATROL carbon front, alloy rear. Electric trail, 12×148 mm, 130mm travel. Oversize 1.8in headtube. | PATROL carbon front, alloy rear. Electric trail, 12×148 mm, 130mm travel. Oversize 1.8in headtube. |
FORK |
FOX 36 E Factory, 150mm travel | FOX 36 Performance, 150mm travel |
SHOCK |
FOX Float X Factory | FOX Float X Performance |
REAR MECH |
SHIMANO Deore XT M8100, 12s | SHIMANO SLX M7100, 12s |
SHIFTER |
SHIMANO Deore XT M8100-R |
SHIMANO SLX M7100-R |
CHAINSET |
SHIMANO FC-M8150, SM-CRE80-12-SB, 34t | SHIMANO FC-EM600, SM-CRE80-12-SB, 34t |
CASSETTE |
SHIMANO SLX M7100, 12s, 12-51t | SHIMANO SLX M7100, 12s, 12-51t |
WHEELSET |
SUNringlé Düroc SD37 rims with SHIMANO SLX hubs , Superboost rear, Boost front. | SUNringlé Düroc SD37 rims with SHIMANO SLX hubs, Superboost rear, Boost front. |
TYRES |
VEE Tire Co. Attack HPL, 29×2.50 | VEE Tire Co. Attack HPL, 29×2.50 |
DROPPER POST |
FOX Transfer Factory, 31.6mm, 125mm | KS KSP900-i, 31.6mm, 125mm, remote |
MOTOR |
SHIMANO Steps DU-EP800 | SHIMANO Steps DU-EP800 |
BATTERY |
SHIMANO BT-E8036, 630Wh | SHIMANO BT-E8036, 630Wh |
*ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
